CYPRESS SEMICONDUCTOR CY7C1380D-167AXC. 芯片, 存储器, SRAM, 18Mb, 并行口 3.4NS TQFP100
The is a 18MB Serial Random Access Memory SRAM integrates 524288 x 36 and 1048576 x 18 SRAM cells with advanced synchronous peripheral circuitry and a two-bit counter for internal burst operation. All synchronous inputs are gated by registers controlled by a positive edge triggered clock input. The synchronous inputs include all addresses, all data inputs, address-pipelining chip enable, depth-expansion chip enables, burst control inputs, write enables and global write. Asynchronous inputs include the output enable and the ZZ pin. Addresses and chip enables are registered at rising edge of clock when address strobe processor or address strobe controller are active. Subsequent burst addresses can be internally generated as they are controlled by the advance pin. Address, data inputs and write controls are registered on-chip to initiate a self-timed write cycle. Write cycles can be one to 2 or 4 bytes wide as controlled by the byte write control inputs.
频率 167 MHz
电源电压DC 3.30 V
供电电流 275 mA
针脚数 100
时钟频率 167 MHz
位数 36
存取时间 3.4 ns
内存容量 2250000 B
存取时间Max 3.4 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 3.135V ~ 3.6V
安装方式 Surface Mount
引脚数 100

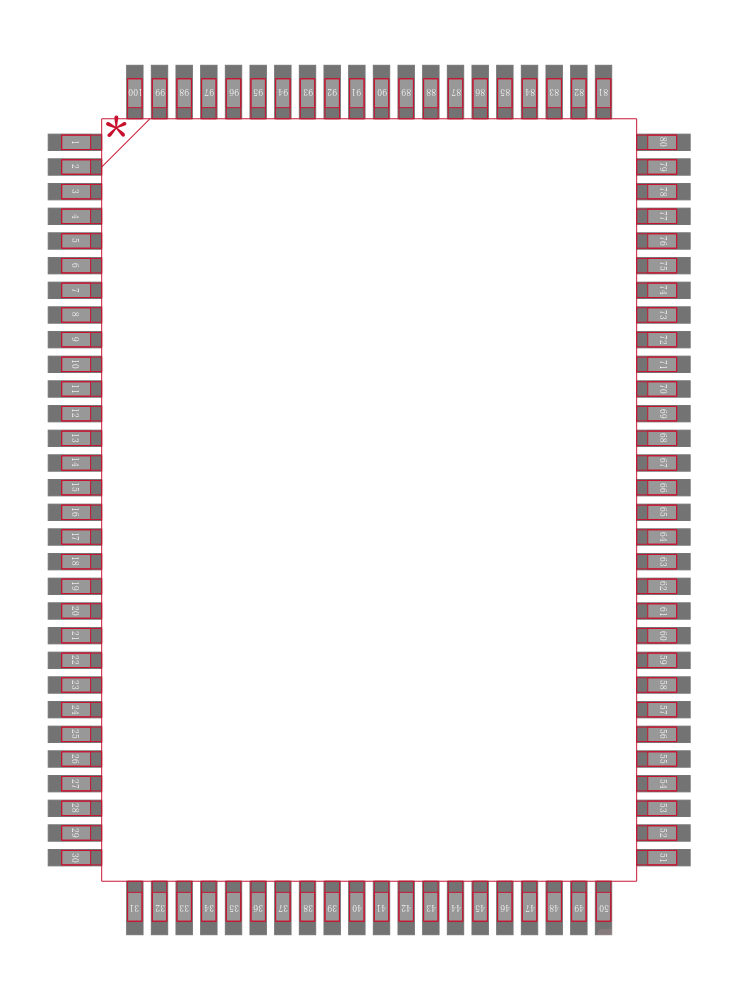

封装 TQFP-100
宽度 14 mm
高度 1.4 mm
封装 TQFP-100
重量 0.01051200387 kg
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tray
制造应用 工业, Computers & Computer Peripherals, Industrial, Portable Devices, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.b.2.a
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY7C1380D-167AXC Cypress Semiconductor 赛普拉斯 | 当前型号 | 当前型号 |
CY7C1380KV33-167AXC 赛普拉斯 | 完全替代 | CY7C1380D-167AXC和CY7C1380KV33-167AXC的区别 |
CY7C1380D-167AXI 赛普拉斯 | 类似代替 | CY7C1380D-167AXC和CY7C1380D-167AXI的区别 |
CY7C1380D-167AXCT 赛普拉斯 | 类似代替 | CY7C1380D-167AXC和CY7C1380D-167AXCT的区别 |
