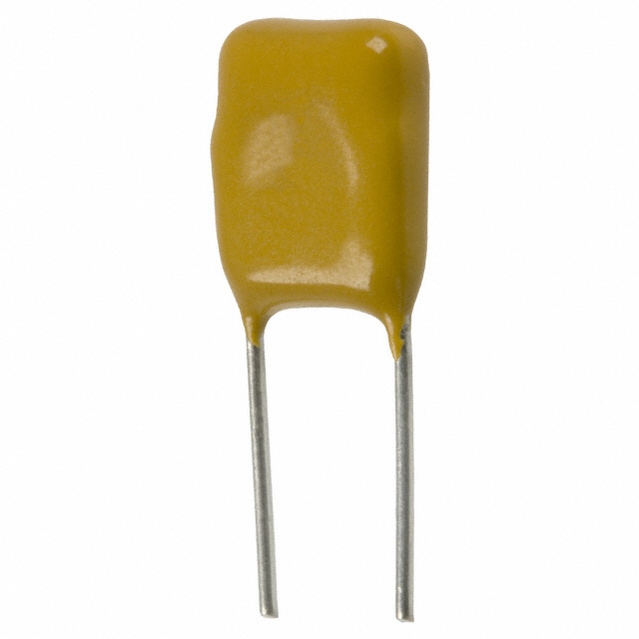

33nF ±5% 200V NPO
0.033 µF ±5% 200V 陶瓷器 C0G,NP0 径向
得捷:
CAP CER 0.033UF 200V NP0 RADIAL
立创商城:
33nF ±5% 200V
艾睿:
Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C340C333J2G5TA multilayer ceramic capacitor from Kemet! Users like its straight wire form. It can withstand a voltage of 200 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 5%. This product is 10.16Max mm long, 11.68Max mm tall and 3.81Max mm deep. Its capacitance value is 0.033uF. The C340C333J2G5TA MLCC capacitor has a radial termination style.
安富利:
Cap Ceramic 0.033uF 200V C0G 5% Radial 5.08mm 125°C Bulk
Verical:
Cap Ceramic 0.033uF 200V C0G 5% Radial 5.08mm 125C Extreme Low ESR Bulk
额定电压DC 200 V
电容 0.033 µF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V

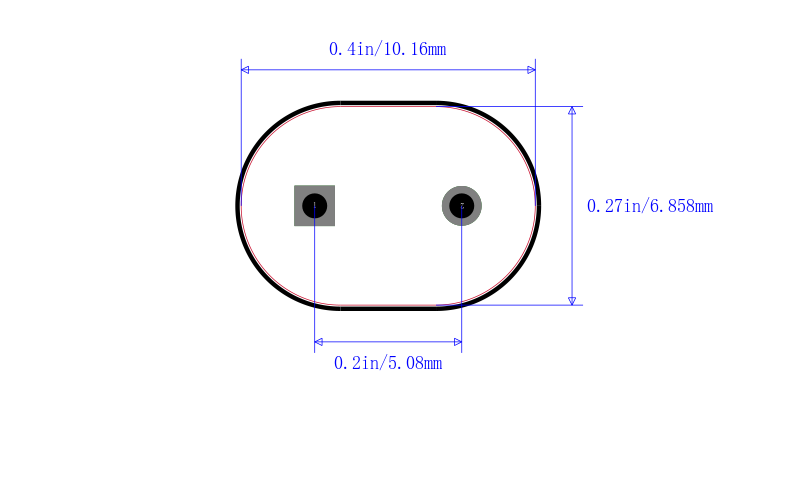

安装方式 Through Hole
封装 Radial
引脚间距 5.08 mm
长度 7.36 mm
宽度 10.16 mm
高度 10.16 mm
脚长度 7.00 mm
封装 Radial
引脚间距 5.08 mm
材质 NP0/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C340C333J2G5TA KEMET Corporation 基美 | 当前型号 | 当前型号 |
C340C333J2G5CA 基美 | 类似代替 | C340C333J2G5TA和C340C333J2G5CA的区别 |
C340C333J1G5TA 基美 | 功能相似 | C340C333J2G5TA和C340C333J1G5TA的区别 |
