CMOS六缓冲器/转换器 CMOS HEX BUFFERS/CONVERTERS
The is an inverting CMOS Hex Buffer/Converter features logic-level conversion using only one supply voltage VCC. The input-signal high level VIH can exceed the VCC supply voltage when this device is used for logic-level conversions. This device is intended for use as CMOS to DTL/TTL converter and can drive directly two DTL/TTL loads. The CD4049UB is designated as replacements for CD4009UB, respectively. Because the CD4049UB requires only one power supply, it is preferred over the CD4009UB and should be used in place of the CD4009UB in all inverter, current driver or logic-level conversion applications.
电源电压DC 3.00V ~ 18.0V
输出接口数 6
电路数 6
通道数 6
针脚数 16
位数 6
传送延迟时间 150 ns
电压波节 5.00 V, 10.0 V, 15.0 V
输出电流驱动 -231 µA
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount

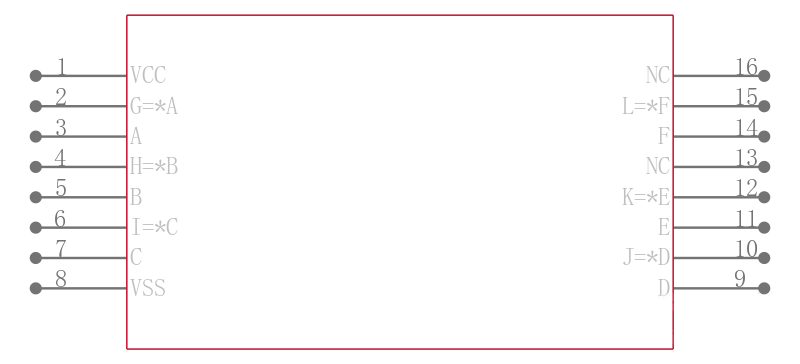

引脚数 16
封装 SOIC-16
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD4049UBDT TI 德州仪器 | 当前型号 | 当前型号 |
CD4049UBD 德州仪器 | 完全替代 | CD4049UBDT和CD4049UBD的区别 |
CD4049UBDRG4 德州仪器 | 完全替代 | CD4049UBDT和CD4049UBDRG4的区别 |
CD4049UBDR 德州仪器 | 类似代替 | CD4049UBDT和CD4049UBDR的区别 |
