CMOS六反相器 CMOS Hex Inverter
3 Description
The CD4069UB device consist of six CMOS inverter circuits. These devices are intended for all general purpose inverter applications where the medium power TTL-drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.
Features
• Standardized Symmetrical Output Characteristics
• Medium Speed Operation: –tPHL, tPLH = 30 ns at 10 V Typical
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 µA at 18 V Over Full Package-Temperature Range, 100 nA at 18 V and 25°C
• Meets All Requirements of JEDEC Tentative Standard No. 13B, Standard Specifications for Description of B Series CMOS Devices
Applications
• Logic Inversion
• Pulse Shaping
• Oscillators
• High-Input-Impedance Amplifiers
电源电压DC 3.00V min
输出电流 6.80 mA
电路数 6
位数 6
传送延迟时间 110 ns
电压波节 5.00 V, 10.0 V, 15.0 V
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount

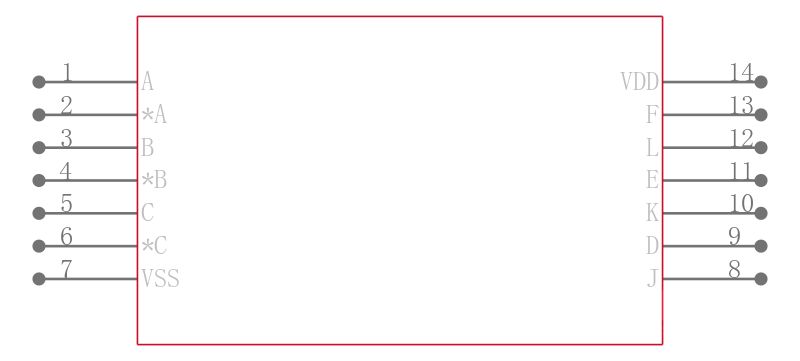

引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD4069UBMT TI 德州仪器 | 当前型号 | 当前型号 |
CD4069UBMG4 德州仪器 | 完全替代 | CD4069UBMT和CD4069UBMG4的区别 |
CD4069UBM96G4 德州仪器 | 完全替代 | CD4069UBMT和CD4069UBM96G4的区别 |
CD4069UBM 德州仪器 | 类似代替 | CD4069UBMT和CD4069UBM的区别 |
