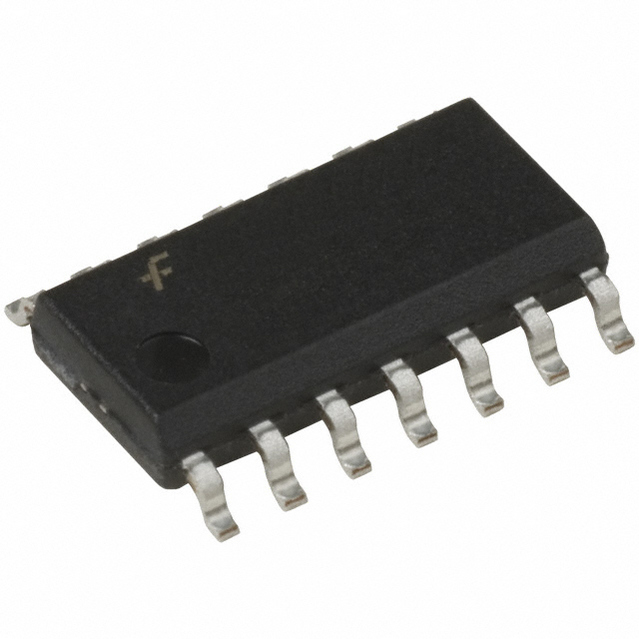

CD4069UBCM

逆变器电路 Inverter Circuits

General Description

The CD4069UB consists of six inverter circuits and is manufactured using complementary MOS CMOS to achieve wide power supply operating range, low power consumption, high noise immunity, and symmetric controlled rise and fall times.

This device is intended for all general purpose inverter applications where the special characteristics of the MM74C901, MM74C907, and CD4049A Hex Inverter/Buffers are not required. In those applications requiring larger noise immunity the MM74C14 or MM74C914 Hex Schmitt Trigger is suggested.

Features

■ Wide supply voltage range: 3.0V to 15V

■ High noise immunity: 0.45 VDD typ.

■ Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS

■ Equivalent to MM74C04
