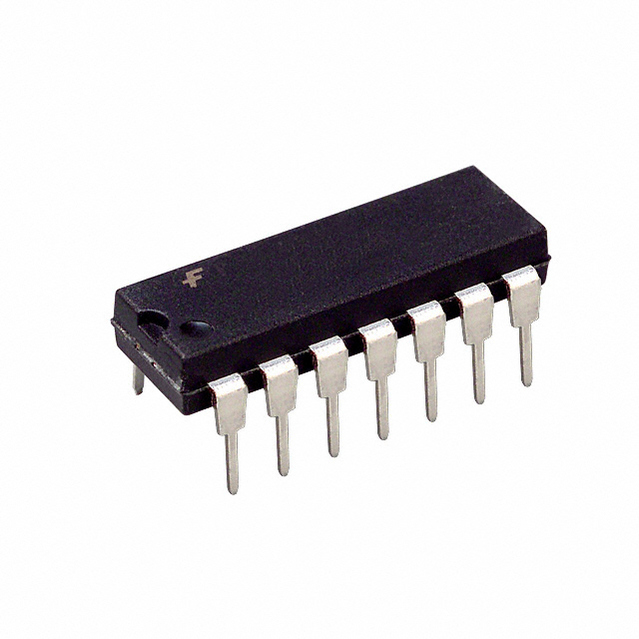

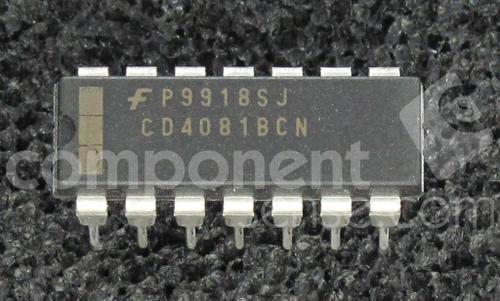

CD4081BCN

四2输入或缓冲B系列门。四2输入与缓冲B系列门 Quad 2-Input OR Buffered B Series Gate . Quad 2-Input AND Buffered B Series Gate

General Description

The CD4071BC and CD4081BC quad gates are monolithic complementary MOS CMOS integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.

All inputs protected against static discharge with diodes to VDD and VSS.

Features

■Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS

■5V–10V–15V parametric ratings

■Symmetrical output characteristics

■Maximum input leakage 1 µA at 15V over full temperature range
