CLA1A-MKW-CWBYA513

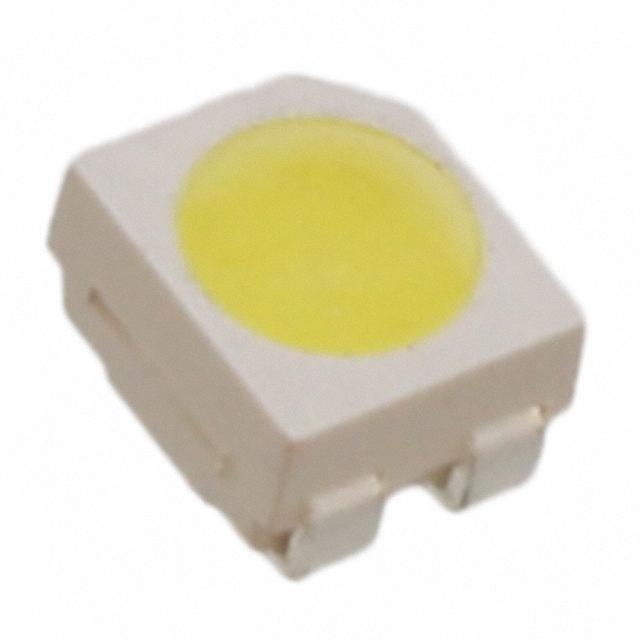

CLA1A-MKW-CWBYA513图片1
CLA1A-MKW-CWBYA513概述

LED Uni-Color White 4Pin PLCC T/R

照明 series 白色,暖色 3200K 3.6V 30mA - 4-PLCC


得捷:
LED CLA1A WARM WHT 3200K 4LCC


艾睿:
LED Uni-Color White 4-Pin PLCC T/R


Chip1Stop:
LED Uni-Color White 4-Pin PLCC T/R


CLA1A-MKW-CWBYA513中文资料参数规格
技术参数

正向电压 3.6 V

耗散功率 147 mW

热阻 200 ℃/W

测试电流 30 mA

正向电压Max 4.2 V

正向电流Max 35 mA

工作温度Max 100 ℃

工作温度Min -40 ℃

耗散功率Max 147 mW

封装参数

安装方式 Surface Mount

引脚数 4

封装 PLCC-4

外形尺寸

封装 PLCC-4

物理参数

颜色 White

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CLA1A-MKW-CWBYA513
型号: CLA1A-MKW-CWBYA513
描述:LED Uni-Color White 4Pin PLCC T/R
