CR0603-JW-304ELF

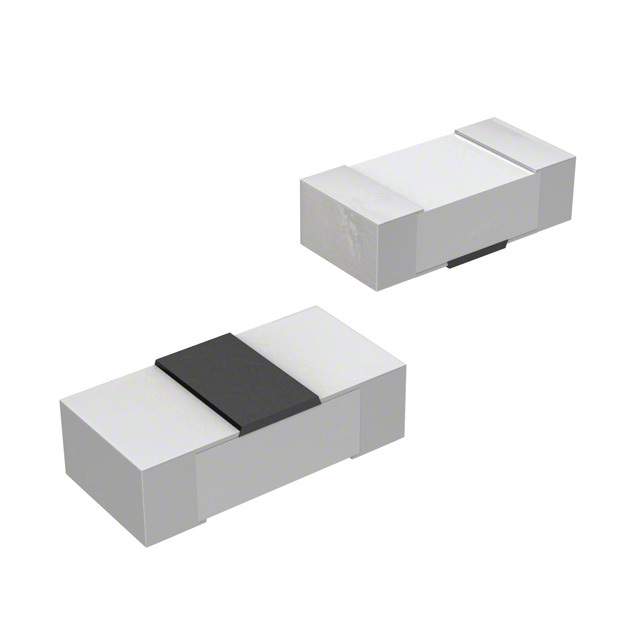

CR0603-JW-304ELF图片1

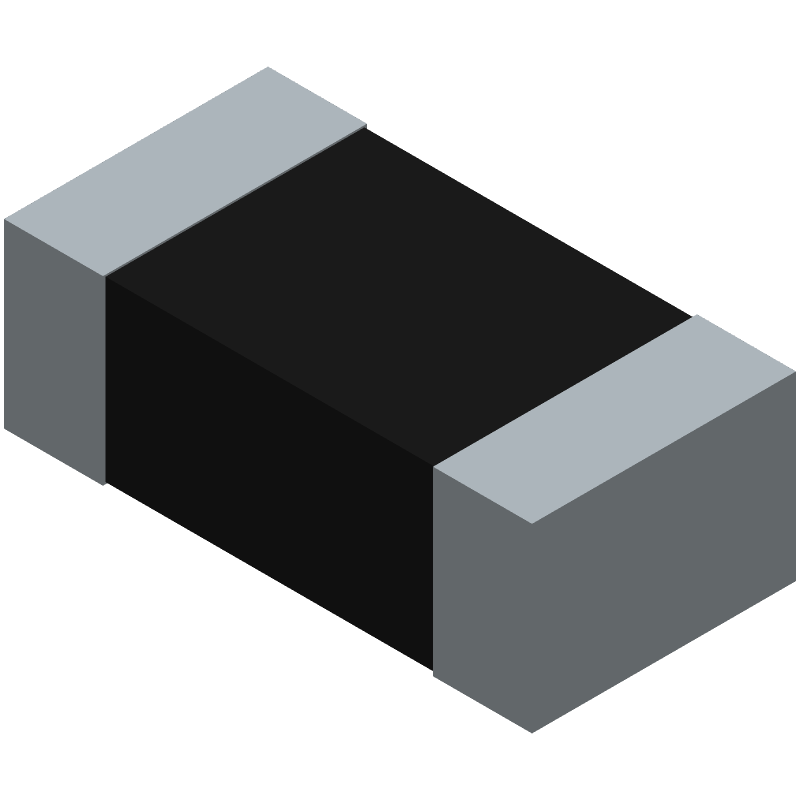

CR0603-JW-304ELF图片2
CR0603-JW-304ELF图片3
CR0603-JW-304ELF图片4
CR0603-JW-304ELF图片5
CR0603-JW-304ELF概述

Res Thick Film 0603 300KΩ 5% 0.1W1/10W ±200ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel

300 kOhms ±5% 0.1W, 1/10W Chip Resistor 0603 1608 Metric Moisture Resistant Thick Film


得捷:
RES SMD 300K OHM 5% 1/10W 0603


艾睿:
This is a CR0603-JW-304ELF fixed single surface-mount resistor from Bourns. This product has a resistance value of 300K Ohm. This dependable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±200 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%.


安富利:
Res Thick Film 0603 300K Ohm 5% 1/10W ±200ppm/°C Molded SMD SMD Paper Tape on Plastic Reel


立创商城:
300kΩ ±5% 100mW


Electro Sonic:
Res Thick Film 0603 300K Ohm 5% 0.1W1/10W ±200ppm/°C Pad SMD T/R


CR0603-JW-304ELF中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.1 W

产品系列 CR

电阻 300 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.60 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

厚度 457 µm

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CR0603-JW-304ELF
型号: CR0603-JW-304ELF
制造商: Bourns J.W. Miller 伯恩斯
描述:Res Thick Film 0603 300KΩ 5% 0.1W1/10W ±200ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel
替代型号CR0603-JW-304ELF
型号/品牌 代替类型 替代型号对比

CR0603-JW-304ELF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CR0603-JW-304E

伯恩斯

完全替代

CR0603-JW-304ELF和CR0603-JW-304E的区别
