SMD片式电阻, 0805 [2012公制], 200 ohm, CR Series, 150 V, 厚膜, 125 mW
200 Ohms ±5% 0.125W,1/8W 芯片 0805(2012 公制) 防潮 厚膜
得捷:
RES SMD 200 OHM 5% 1/8W 0805
贸泽:
厚膜电阻器 - SMD 200ohm 5%
艾睿:

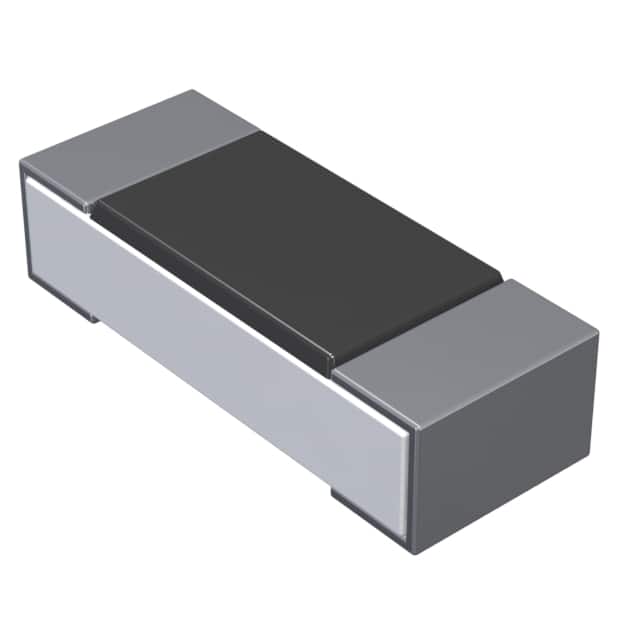

This is a CR0805-JW-201ELF fixed single surface-mount resistor from Bourns. This dependable part has a power rating of 0.125 1/8 W. This product has a resistance value of 200 Ohm. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. This device utilizes thick film technology. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.
安富利:
Res Thick Film 0805 200 Ohm 5% 1/8W ±200ppm/°C Molded SMD SMD Paper Tape on Plastic Reel
Verical:
Res Thick Film 0805 200 Ohm 5% 0.125W1/8W ±200ppm/C Pad SMD T/R
Electro Sonic:
Res Thick Film 0805 200 Ohm 5% 0.125W1/8W ±200ppm/°C Pad SMD T/R
容差 ±5 %
额定功率 0.125 W
产品系列 CR
电阻 200 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 150 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.5 mm
封装公制 2012
封装 0805
厚度 508 µm
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR0805-JW-201ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CR0805-FX-2000ELF 伯恩斯 | 类似代替 | CR0805-JW-201ELF和CR0805-FX-2000ELF的区别 |
RC0805JR-07200RL 国巨 | 功能相似 | CR0805-JW-201ELF和RC0805JR-07200RL的区别 |
CRCW0805200RJNEA 威世 | 功能相似 | CR0805-JW-201ELF和CRCW0805200RJNEA的区别 |
