计数器移位寄存器 CMOS Dual 4-Stage Static Shift Reg
Easily switch into other logical states by implementing this counter shift register manufactured by Texas Instruments. This counter shift register has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
电源电压DC 3.00V min
输出接口数 4
电路数 2
位数 4
电压波节 5.00 V, 10.0 V, 15.0 V
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
安装方式 Surface Mount

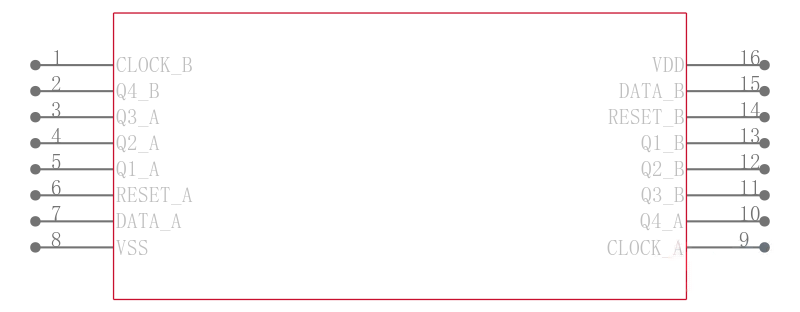

引脚数 16
封装 TSSOP-16
宽度 4.4 mm
封装 TSSOP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD4015BPWRG4 TI 德州仪器 | 当前型号 | 当前型号 |
CD4015BPW 德州仪器 | 完全替代 | CD4015BPWRG4和CD4015BPW的区别 |
CD4015BPWE4 德州仪器 | 完全替代 | CD4015BPWRG4和CD4015BPWE4的区别 |
CD4015BPWG4 德州仪器 | 完全替代 | CD4015BPWRG4和CD4015BPWG4的区别 |
