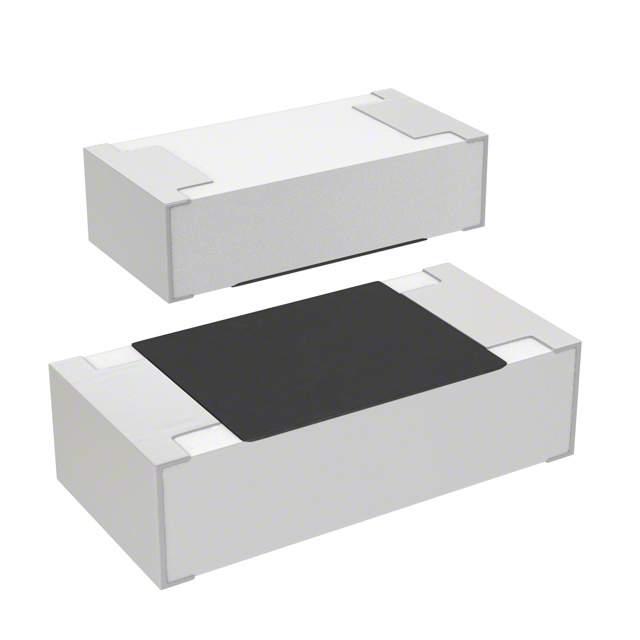

Res Thick Film 0603 750KΩ 1% 0.1W1/10W ±100ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel
750 kOhms ±1% 0.1W,1/10W 芯片 0603(1608 公制) 防潮 厚膜
得捷:
RES SMD 750K OHM 1% 1/10W 0603
立创商城:
750kΩ ±1% 100mW
贸泽:
Thick Film Resistors - SMD 750K ohm 1%
艾睿:
The CR0603-FX-7503ELF fixed single surface-mount resistor from Bourns makes it easy to add resistors to your circuit board. This part has a power rating of 0.1 1/10 W. This product has a resistance value of 750K Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 1%. This device is made with thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C.
安富利:
Res Thick Film 0603 750K Ohm 1% 1/10W ±100ppm/°C Molded SMD SMD Paper Tape on Plastic Reel
Electro Sonic:
Res Thick Film 0603 750K Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD T/R
容差 ±1 %
额定功率 0.1 W
产品系列 CR
电阻 750 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
厚度 457 µm
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR0603-FX-7503ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CR0603-FX-7503E 伯恩斯 | 完全替代 | CR0603-FX-7503ELF和CR0603-FX-7503E的区别 |
