CR0603-FX-1153ELF

CR0603-FX-1153ELF图片1
CR0603-FX-1153ELF图片2
CR0603-FX-1153ELF图片3
CR0603-FX-1153ELF概述

厚膜电阻器 - SMD 115KOHM 1/10WATT 1%

BOURNS 贴片 0603 115KΩ ±1%


立创商城:
115kΩ ±1% 100mW


得捷:
RES SMD 115K OHM 1% 1/10W 0603


贸泽:
厚膜电阻器 - SMD 115KOHM 1/10WATT 1%


艾睿:

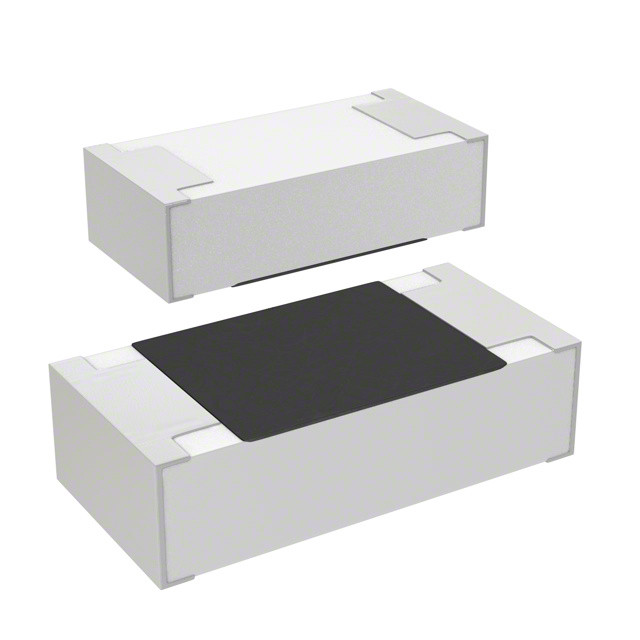

This is a CR0603-FX-1153ELF fixed single surface-mount resistor from Bourns. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 115K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device utilizes thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.


安富利:
Res Thick Film 0603 115K Ohm 1% 1/10W ±100ppm/°C Molded SMD SMD Paper Tape on Plastic Reel


Electro Sonic:
Res Thick Film 0603 115K Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD T/R


CR0603-FX-1153ELF中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.1 W

产品系列 CR

电阻 115 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

厚度 457 µm

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CR0603-FX-1153ELF
型号: CR0603-FX-1153ELF
制造商: Bourns J.W. Miller 伯恩斯
描述:厚膜电阻器 - SMD 115KOHM 1/10WATT 1%
