TEXAS INSTRUMENTS CD74HC4094PWT 移位寄存器, HC系列, 移位存储, 串行至并行、串行至串行, 1元件, TSSOP, 16 引脚, 2 V, 6 V
Description
The ’HC4094 and CD74HCT4094 are 8-stage serial shift registers having a storage latch associated with each stage for strobing data from the serial input to parallel buffered three-state outputs. The parallel outputs may be connected directly to common bus lines. Data is shifted on positive
clock transitions. The data in each shift register stage is transferred to the storage register when the Strobe input is high. Data in the storage register appears at the outputs whenever the Output-Enable signal is high.
输出接口数 10
输出电流 5.20 mA
电路数 2

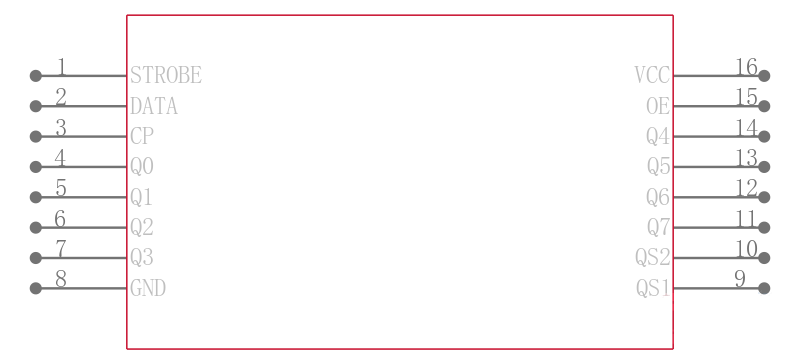

针脚数 16
位数 8
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HC4094PWT TI 德州仪器 | 当前型号 | 当前型号 |
CD74HC4094PWR 德州仪器 | 完全替代 | CD74HC4094PWT和CD74HC4094PWR的区别 |
CD74HC4094PW 德州仪器 | 完全替代 | CD74HC4094PWT和CD74HC4094PW的区别 |
CD74HC4094PWRG4 德州仪器 | 完全替代 | CD74HC4094PWT和CD74HC4094PWRG4的区别 |
