CMB02070X1009JB200

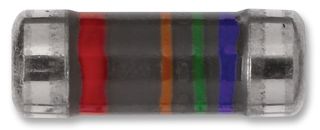

CMB02070X1009JB200图片1

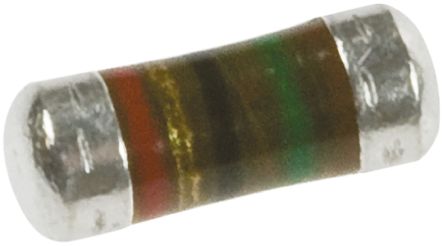

CMB02070X1009JB200图片2

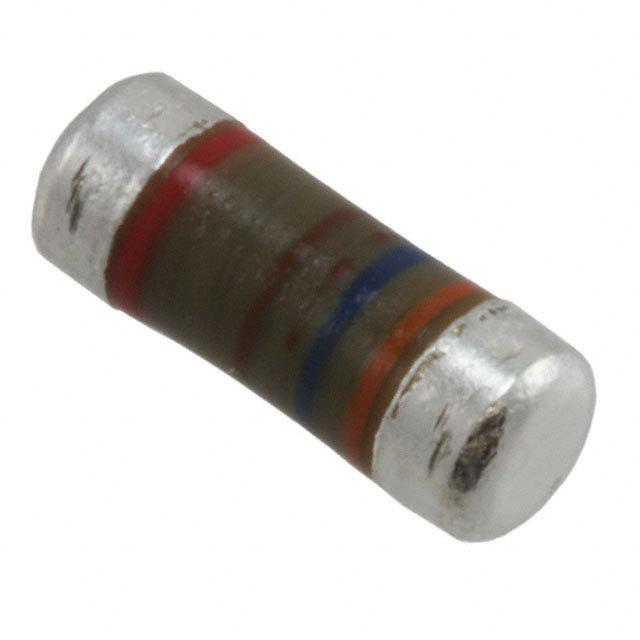

CMB02070X1009JB200图片3
CMB02070X1009JB200图片4
CMB02070X1009JB200概述

VISHAY  CMB02070X1009JB200  电阻, 金属电极无限面MELF 表面贴装, CMB 0207系列, 10 ohm, 400 mW, ± 5%, 碳膜, MELF DIN 0207 [6123 公制]

The is a 10R 400mW surface-mounting MELF Resistor with special carbon film technology and advanced pulse load capability is the perfect choice for the protection of circuitry with signal and mains input lines from surge pulses. The resistor is also suitable for circuits exposed to high levels of electromagnetic interference or electro-static discharge.

.
Up to tbf continuous pulse load capability
.
ESD capability - 16kV, human body model
CMB02070X1009JB200中文资料参数规格
技术参数

额定电压DC 500 V

工作电压 500 V

容差 ±5 %

额定功率 400 mW

电阻 10 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 500 V

封装参数

安装方式 Surface Mount

引脚数 2

封装 剪切带

外形尺寸

长度 5.8 mm

直径 2.20 mm

封装 剪切带

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -250 ppm/℃

其他

包装方式 Cut Tape CT

制造应用 Industrial, Automotive, 工业, Medical, 车用, 通信与网络, 医用, Communications & Networking

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买CMB02070X1009JB200
型号: CMB02070X1009JB200
制造商: Vishay Semiconductor 威世
描述:VISHAY  CMB02070X1009JB200  电阻, 金属电极无限面MELF 表面贴装, CMB 0207系列, 10 ohm, 400 mW, ± 5%, 碳膜, MELF DIN 0207 [6123 公制]
替代型号CMB02070X1009JB200
型号/品牌 代替类型 替代型号对比

CMB02070X1009JB200

Vishay Semiconductor 威世

当前型号

当前型号

WRM0207C-10RFI

TT Electronics/Welwyn

功能相似

CMB02070X1009JB200和WRM0207C-10RFI的区别
