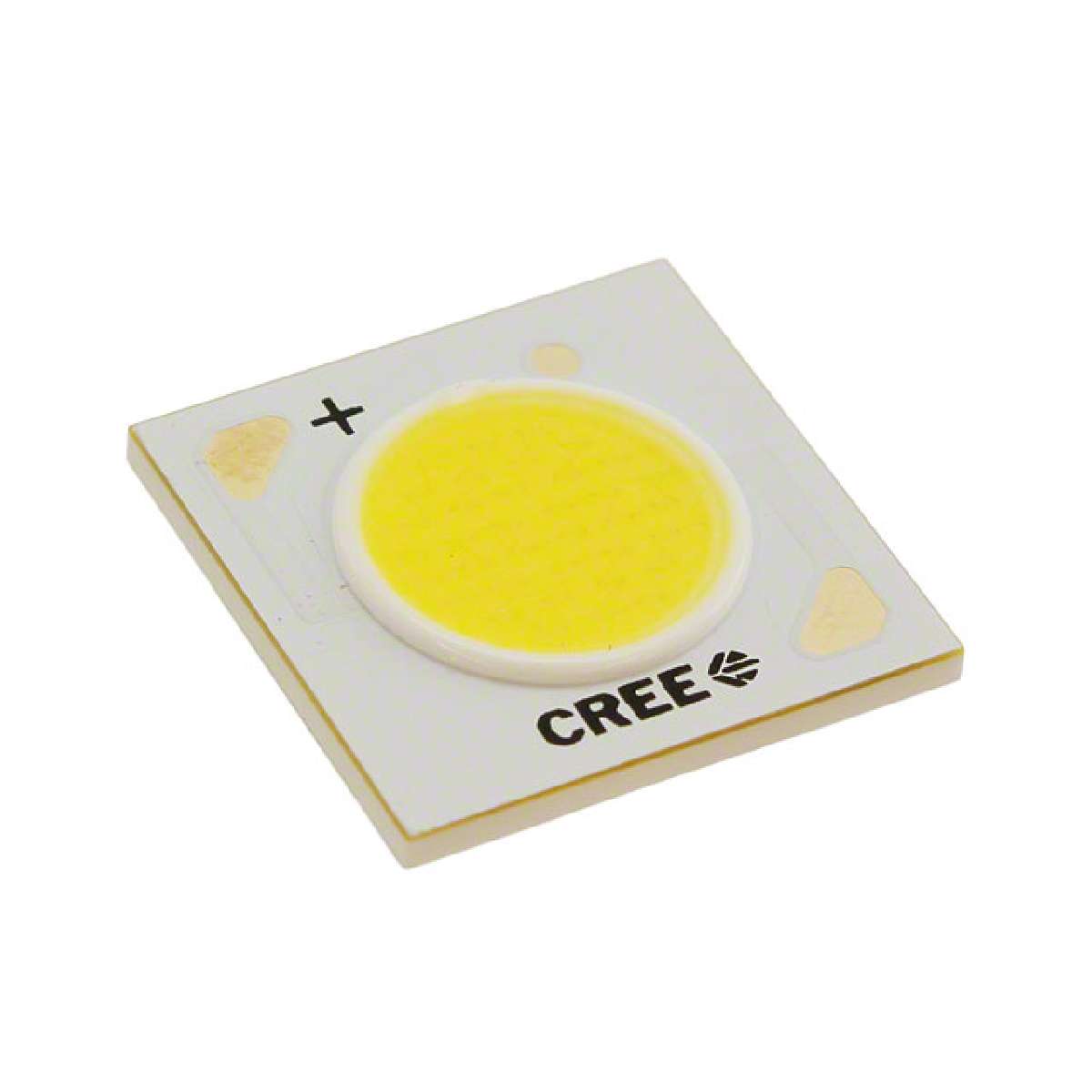

CREE CXA1507-0000-000N00F227F. 发光二极管, CXA系列, 2700K, 680LM, 80CRI, 白色, 管装
The XLamp CXA1507 series High Brightness with top-side solder connections. The XLamp® CXA1507 LED array expands Cree"s family of high-flux, multi-die arrays in a smaller, easy-to-use platform. With XLamp LED lighting-class reliability, the CXA1507"s small, uniform emitting surface enables both directional and non-directional lighting applications including lamp retrofit and luminaire designs. Available in 2-step, 3-step and 4-step colour consistency and featuring a 9mm optical source, the CXA1507 brings new levels of flux and efficacy to this form factor. The CXA LED design guide provides basic information on the requirements to use the CXA1507 LED successfully in luminaire designs.
- .
- Available in ANSI white bins as well as 4-/2-step EasyWhite® bins at 2700/3000/3500/4000/5000 K
- .
- Available in ANSI white bins as well as 4-step EasyWhite bins at 5700 and 6500K CCT
- .
- Available in 70-, 80-, 90- and 93-minimum CRI options
- .
- 18 & 37V Forward voltage options
- .
- 85°C Binning and characterization
- .
- 750mA 18V, 375mA 37V Maximum drive current
- .
- 115° Viewing angle, uniform chromaticity profile
- .
- Thermocouple attach point
- .
- NEMA SSL-3 2011 standard flux bins
- .
- REACH compliant
- .
- UL recognized component E349212
