CF14JT160R

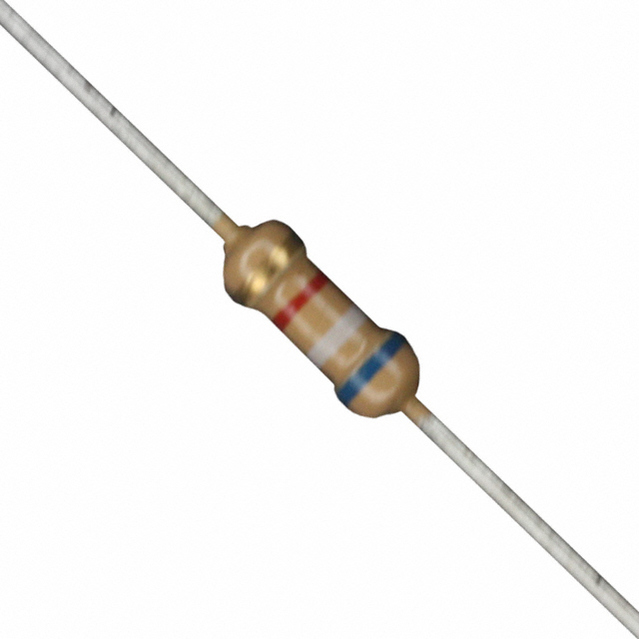

CF14JT160R图片1
CF14JT160R图片2
CF14JT160R图片3
CF14JT160R概述

160Ω ±5% 0.25W1/4W 0/-400ppm/℃ Φ2.30mm

160 Ohms ±5% 0.25W,1/4W 轴向 通孔器 阻燃涂层,安全 炭膜


得捷:
RES 160 OHM 5% 1/4W AXIAL


艾睿:
Looking for a traditional mounting method for resistors? Look no further, this CF14JT160R fixed single through-hole resistor from SEI Stackpole Electronics will get the job done. This product has a resistance value of 160 Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is -400 to 0 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The CF14JT160R part has an axial termination style. This product is 6 mm long. This device is made with carbon film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%.


Verical:
Res Carbon Film 160 Ohm 5% 0.25W1/4W -400ppm/C to 0ppm/C Conformal Coated AXL T/R


CF14JT160R中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

产品系列 CF

电阻 160 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 6.50 mm

直径 Φ2.30mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

CF14JT160R引脚图与封装图
CF14JT160R引脚图

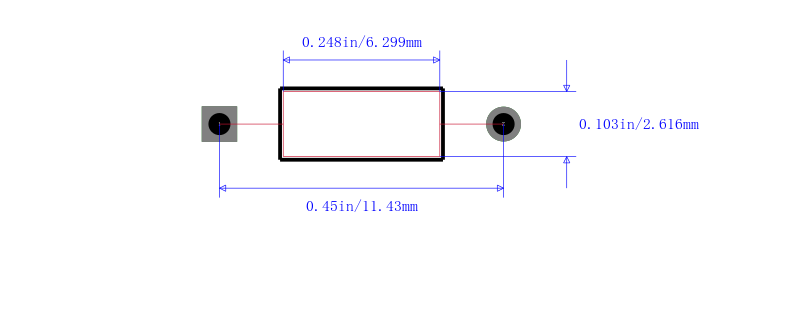

CF14JT160R封装图

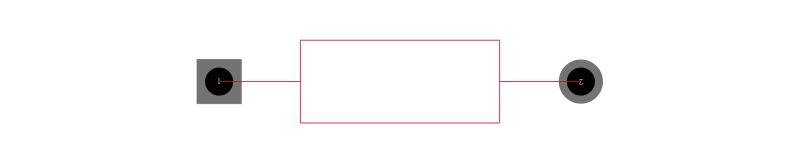

CF14JT160R封装焊盘图
在线购买CF14JT160R
型号: CF14JT160R
制造商: Stackpole Electronics
描述:160Ω ±5% 0.25W1/4W 0/-400ppm/℃ Φ2.30mm
替代型号CF14JT160R
型号/品牌 代替类型 替代型号对比

CF14JT160R

Stackpole Electronics

当前型号

当前型号

CF14JA160R

Stackpole Electronics

完全替代

CF14JT160R和CF14JA160R的区别

CFM12JT160R

Stackpole Electronics

类似代替

CF14JT160R和CFM12JT160R的区别

PCF14JT160R

Stackpole Electronics

功能相似

CF14JT160R和PCF14JT160R的区别
