CF14JT56K0

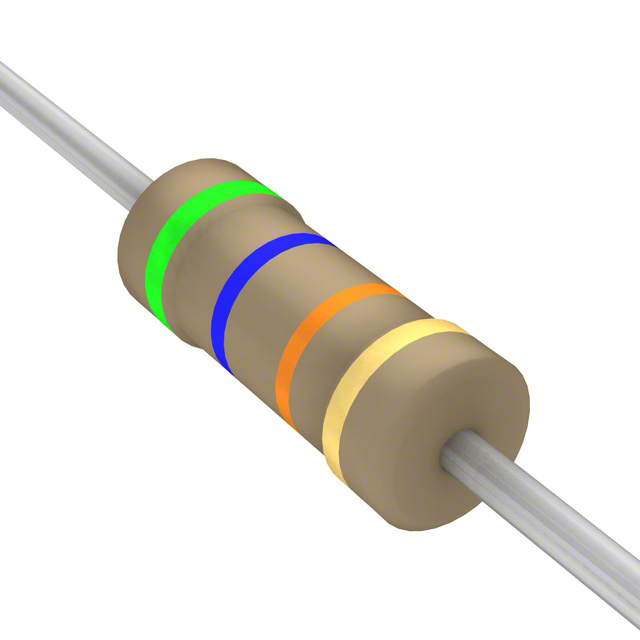

CF14JT56K0图片1
CF14JT56K0图片2
CF14JT56K0概述

CF 系列 0.25 W 56 kΩ ±5% 0/-500 ppm/°C 碳膜电阻

is manufactured by and is categorized in the Through Hole Resistors category. CF14JT56K0 is described as RES 56K OHM 1/4W 5% AXIAL. Perfect Parts is a supplier of Resistors and other Passives.


得捷:
RES 56K OHM 5% 1/4W AXIAL


艾睿:
Look no further than SEI Stackpole Electronics&s; CF14JT56K0 fixed single through-hole resistor, a cost-effective component that can be easily soldered to any printed circuit board. This product has a resistance value of 56K Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is -500 to 0 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This product is 6 mm long. This device is made with carbon film technology. It has a tolerance of 5%. The CF14JT56K0 part has an axial termination style.


安富利:
Res Carbon Film 56K Ohm 5% 1/4W -500ppm/°C to 0ppm/°C Conformal AXL Thru-Hole T/R


Chip1Stop:
Res Carbon Film 56K Ohm 5% 0.25W1/4W -500ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R


Verical:
Res Carbon Film 56K Ohm 5% 0.25W1/4W -500ppm/C to 0ppm/C Conformal Coated AXL T/R


CF14JT56K0中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

产品系列 CF

电阻 56 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 6.5 mm

直径 Φ2.30mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -500ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CF14JT56K0引脚图与封装图

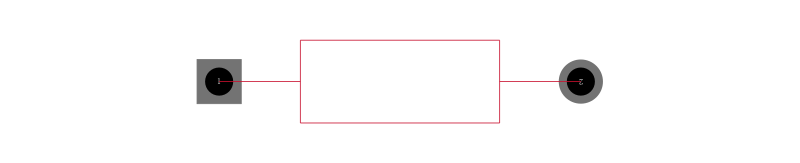

CF14JT56K0引脚图

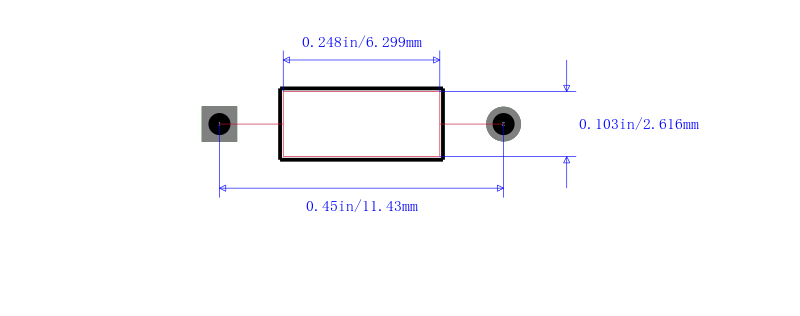

CF14JT56K0封装图
CF14JT56K0封装焊盘图
在线购买CF14JT56K0
型号: CF14JT56K0
制造商: Stackpole Electronics
描述:CF 系列 0.25 W 56 kΩ ±5% 0/-500 ppm/°C 碳膜电阻
替代型号CF14JT56K0
型号/品牌 代替类型 替代型号对比

CF14JT56K0

Stackpole Electronics

当前型号

当前型号

CF14JA56K0

Stackpole Electronics

完全替代

CF14JT56K0和CF14JA56K0的区别

PCF14JT56K0

Stackpole Electronics

类似代替

CF14JT56K0和PCF14JT56K0的区别

CFM12JT56K0

Stackpole Electronics

类似代替

CF14JT56K0和CFM12JT56K0的区别
