CF14JT22R0

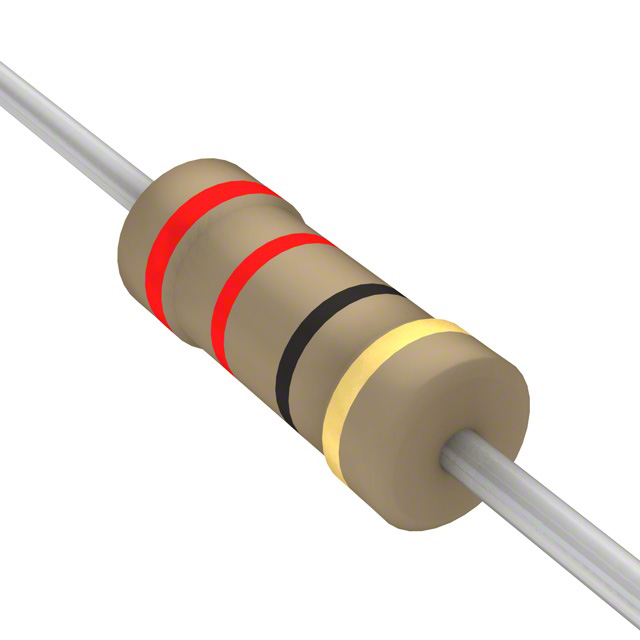

CF14JT22R0图片1
CF14JT22R0图片2
CF14JT22R0图片3
CF14JT22R0图片4
CF14JT22R0概述

22Ω ±5% 0.25W1/4W 0/-400ppm/℃ Φ2.30mm

22 Ohms ±5% 0.25W,1/4W 轴向 通孔器 阻燃涂层,安全 炭膜


得捷:
RES 22 OHM 5% 1/4W AXIAL


艾睿:
If your printed circuit design utilizes more traditional mounting methods for components, look no further than the CF14JT22R0 fixed single through-hole resistor, developed by SEI Stackpole Electronics. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 22 Ohm. Its temperature coefficient is -400 to 0 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 5%. This product is 6 mm long. This device is made with carbon film technology. This part has an operating temperature of -55 to 155 °C. The CF14JT22R0 part has an axial termination style.


富昌:
CF Series Ø 2.3 x 6.5 mm 0.25 W 22 Ω ±5% 0/-400 ppm/°C Carbon Film Resistor


Chip1Stop:
Res Carbon Film 22 Ohm 5% 0.25W1/4W -400ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R


Verical:
Res Carbon Film 22 Ohm 5% 0.25W1/4W -400ppm/C to 0ppm/C Conformal Coated AXL T/R


CF14JT22R0中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

产品系列 CF

电阻 22 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 6.5 mm

直径 Φ2.30mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CF14JT22R0引脚图与封装图

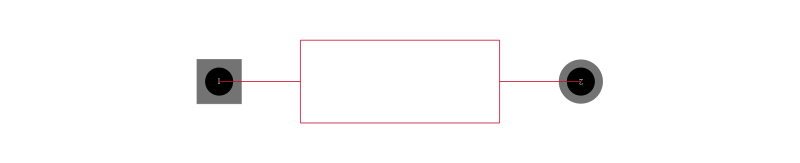

CF14JT22R0引脚图

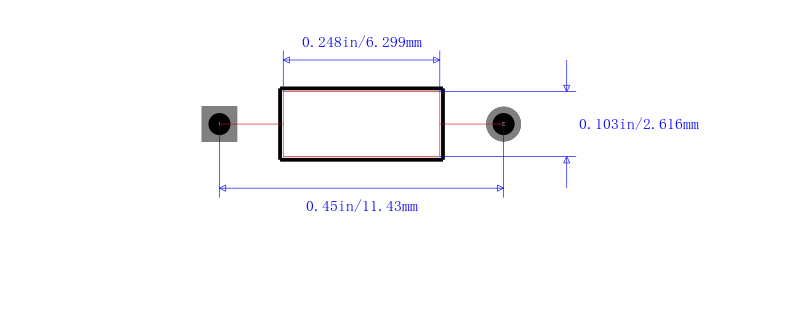

CF14JT22R0封装图
CF14JT22R0封装焊盘图
在线购买CF14JT22R0
型号: CF14JT22R0
制造商: Stackpole Electronics
描述:22Ω ±5% 0.25W1/4W 0/-400ppm/℃ Φ2.30mm
替代型号CF14JT22R0
型号/品牌 代替类型 替代型号对比

CF14JT22R0

Stackpole Electronics

当前型号

当前型号

CF14JA22R0

Stackpole Electronics

完全替代

CF14JT22R0和CF14JA22R0的区别

PCF14JT22R0

Stackpole Electronics

类似代替

CF14JT22R0和PCF14JT22R0的区别

CFM12JT22R0

Stackpole Electronics

功能相似

CF14JT22R0和CFM12JT22R0的区别
