CF14JT910R

CF14JT910R图片1
CF14JT910R图片2
CF14JT910R图片3
CF14JT910R概述

CF 系列 0.25 W 910Ω ±5% 0/-400 ppm/°C 碳膜电阻

±5% 0.25W,1/4W 轴向 通孔器 阻燃涂层,安全 炭膜


得捷:
RES 910 OHM 5% 1/4W AXIAL


艾睿:
If you are in the market for a cost-effective alternative to surface-mount components, the CF14JT910R fixed single through-hole resistor from SEI Stackpole Electronics could be of use in your design. This product has a resistance value of 910 Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is -400 to 0 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with carbon film technology. This product is 6 mm long. The CF14JT910R part has an axial termination style. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.


Chip1Stop:
Res Carbon Film 910 Ohm 5% 0.25W1/4W -400ppm/C to 0ppm/C Conformal Coated AXL T/R


Verical:
Res Carbon Film 910 Ohm 5% 0.25W1/4W -400ppm/C to 0ppm/C Conformal Coated AXL T/R


CF14JT910R中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

产品系列 CF

电阻 910 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

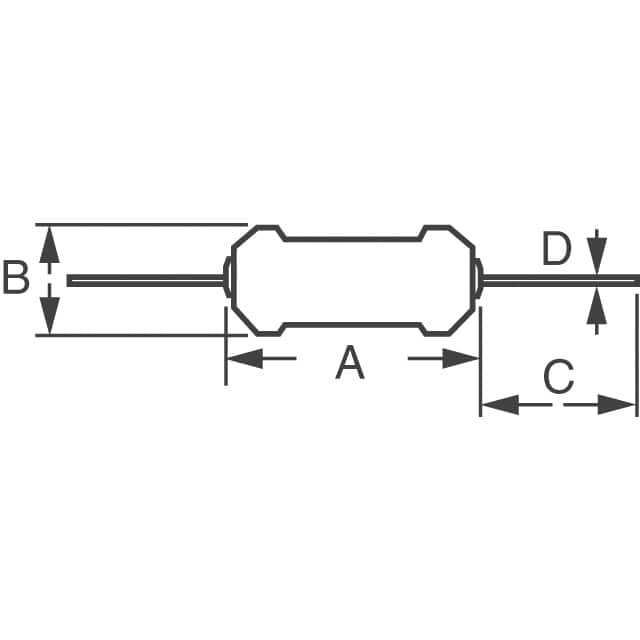

外形尺寸

长度 6.5 mm

直径 Φ2.30mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CF14JT910R引脚图与封装图

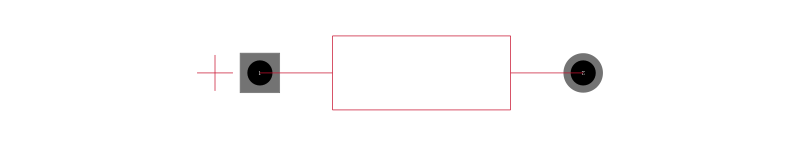

CF14JT910R引脚图

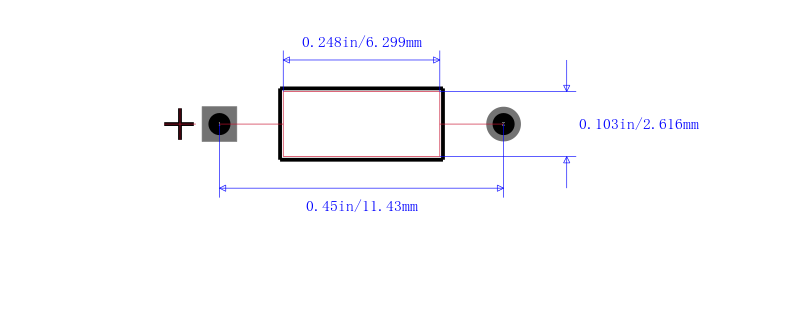

CF14JT910R封装图
CF14JT910R封装焊盘图
在线购买CF14JT910R
型号: CF14JT910R
制造商: Stackpole Electronics
描述:CF 系列 0.25 W 910Ω ±5% 0/-400 ppm/°C 碳膜电阻
替代型号CF14JT910R
型号/品牌 代替类型 替代型号对比

CF14JT910R

Stackpole Electronics

当前型号

当前型号

CF14JA910R

Stackpole Electronics

完全替代

CF14JT910R和CF14JA910R的区别

CFM12JT910R

Stackpole Electronics

类似代替

CF14JT910R和CFM12JT910R的区别

PCF14JT910R

Stackpole Electronics

功能相似

CF14JT910R和PCF14JT910R的区别
