Res Thick Film 1206 510Ω 5% 0.25W1/4W ±200ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel
510 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 3216 Metric Moisture Resistant Thick Film
得捷:
RES SMD 510 OHM 5% 1/4W 1206
立创商城:
510Ω ±5% 250mW
艾睿:

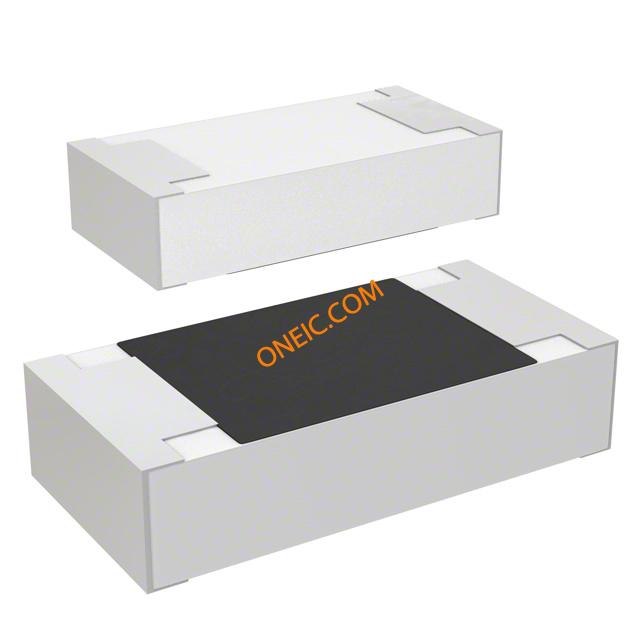

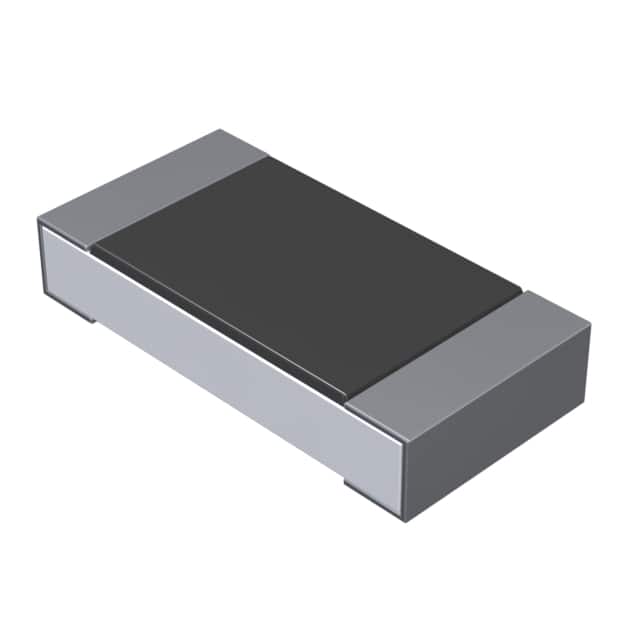

This is a CR1206-JW-511ELF fixed single surface-mount resistor from Bourns. This product has a resistance value of 510 Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 5%.
安富利:
Res Thick Film 1206 510 Ohm 5% 1/4W ±200ppm/°C Molded SMD SMD Paper Tape on Plastic Reel
Verical:
Res Thick Film 1206 510 Ohm 5% 1/4W ±200ppm/°C SMD Paper Tape on Plastic Reel
Electro Sonic:
Res Thick Film 1206 510 Ohm 5% 0.25W1/4W ±200ppm/°C Pad SMD T/R
容差 ±5 %
额定功率 0.25 W
产品系列 CR
电阻 510 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.20 mm
宽度 1.6 mm
高度 0.6 mm
封装公制 3216
封装 1206
厚度 610 µm
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR1206-JW-511ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CR1206-FX-5100ELF 伯恩斯 | 类似代替 | CR1206-JW-511ELF和CR1206-FX-5100ELF的区别 |
CRCW1206510RJNEA 威世 | 功能相似 | CR1206-JW-511ELF和CRCW1206510RJNEA的区别 |
RK73B2BTTD511J KOA Speer | 功能相似 | CR1206-JW-511ELF和RK73B2BTTD511J的区别 |
