8位缓冲器/线路驱动器，具有三态输出 8-BIT BUFFERS/LINE DRIVERS WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. It has 8 channels per chip.
电源电压DC 4.75V min
输出接口数 8
电路数 2
通道数 8
针脚数 20
位数 8
电压波节 5.00 V
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 20

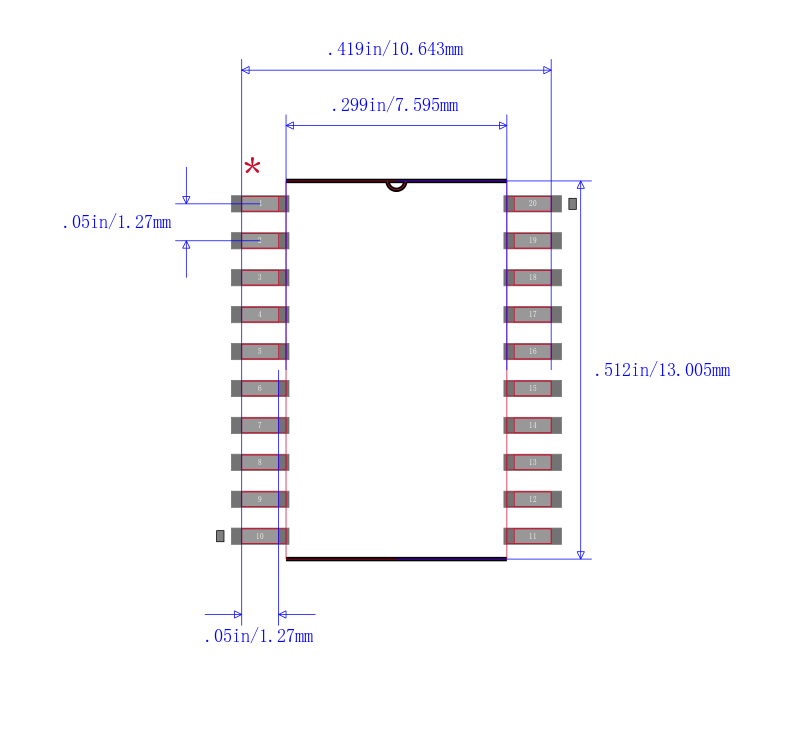

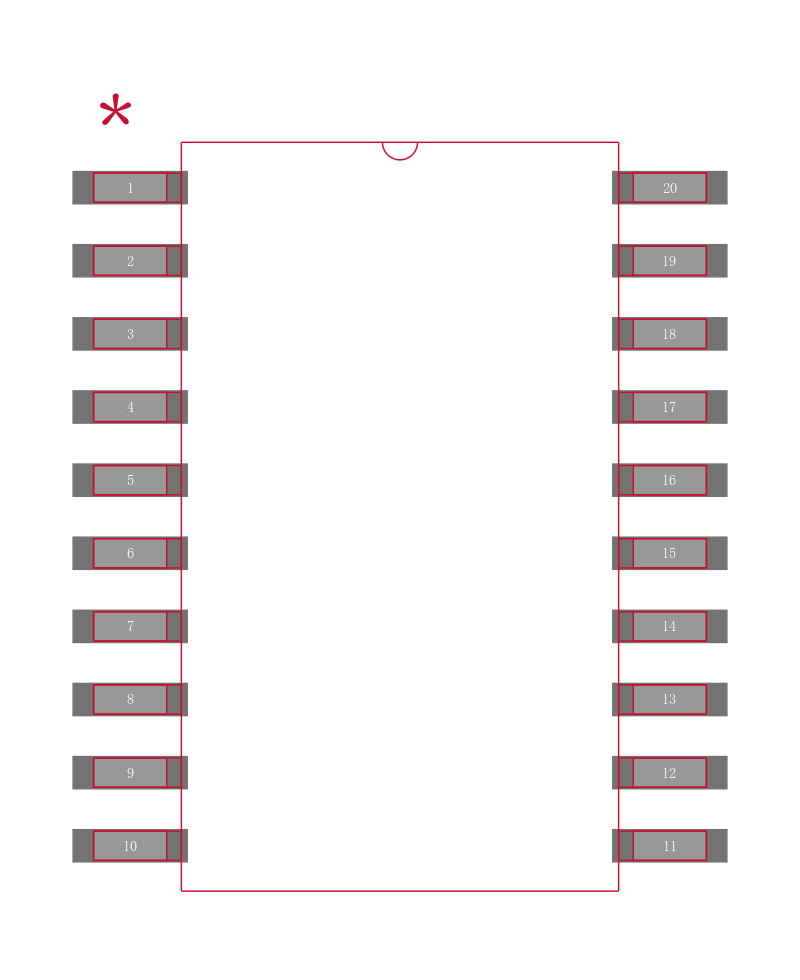

封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CY74FCT240ATSOC TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT240TSOC 德州仪器 | 完全替代 | CY74FCT240ATSOC和CY74FCT240TSOC的区别 |
CY74FCT240ATSOCG4 德州仪器 | 完全替代 | CY74FCT240ATSOC和CY74FCT240ATSOCG4的区别 |
CY74FCT240ATSOCTG4 德州仪器 | 完全替代 | CY74FCT240ATSOC和CY74FCT240ATSOCTG4的区别 |
