8位缓冲器/线路驱动器,具有三态输出 8-BIT BUFFERS/LINE DRIVERS WITH 3-STATE OUTPUTS
Buffer, Inverting 2 Element 4 Bit per Element 3-State Output 20-SOIC
得捷:
IC BUFFER INVERT 5.25V 20SOIC
立创商城:
CY74FCT240TSOC
德州仪器TI:
8-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs and 3-state outputs
艾睿:
This CY74FCT240TSOC buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. It has 8 channels per chip. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
Chip1Stop:
Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SOIC Tube
Verical:
Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SOIC Tube
DeviceMart:
IC INVERTER DUAL 4-INPUT 20SOIC
电源电压DC 4.75V min
输出接口数 8
电路数 2
通道数 8
位数 8
传送延迟时间 9.00 ns
电压波节 5.00 V
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 20

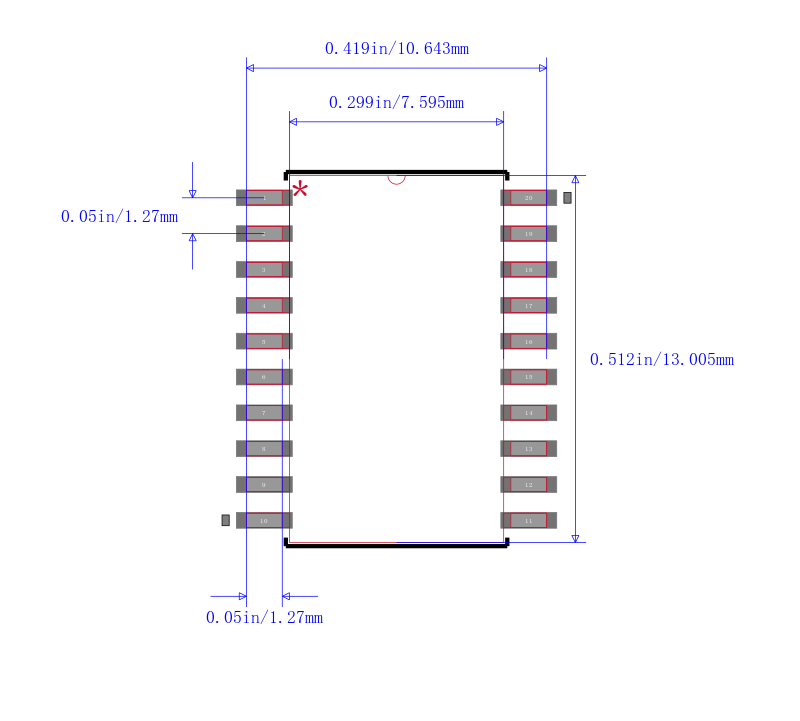

封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY74FCT240TSOC TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT240ATSOC 德州仪器 | 完全替代 | CY74FCT240TSOC和CY74FCT240ATSOC的区别 |
CY74FCT240TSOCG4 德州仪器 | 完全替代 | CY74FCT240TSOC和CY74FCT240TSOCG4的区别 |
CY74FCT240TSOCT 德州仪器 | 类似代替 | CY74FCT240TSOC和CY74FCT240TSOCT的区别 |
