CF18JT750R

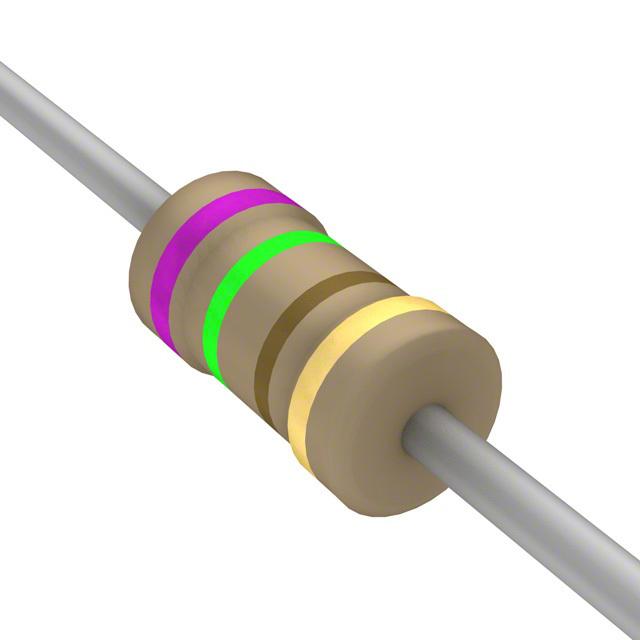

CF18JT750R图片1
CF18JT750R图片2
CF18JT750R概述

750Ω ±5% 0.125W1/8W 0/-400ppm/℃ Φ1.70mm

Looking for a low-cost resistor to add to your printed circuit design? The fixed single through-hole resistor from SEI is for you! This product has a resistance value of 750 Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is -400 to 0 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with carbon film technology. The CF18JT750R part has an axial termination style. This product is 3.3 mm long. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.

CF18JT750R中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.125 W

产品系列 CF

电阻 750 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

外形尺寸

长度 3.3 mm

直径 Φ1.70mm

脚长度 28 mm

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 PB free

数据手册

CF18JT750R引脚图与封装图
CF18JT750R引脚图

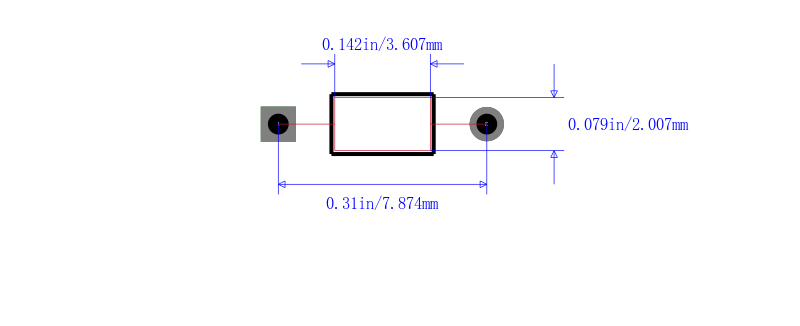

CF18JT750R封装图

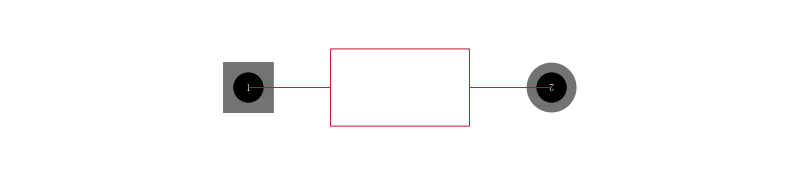

CF18JT750R封装焊盘图
在线购买CF18JT750R
型号: CF18JT750R
制造商: Stackpole Electronics
描述:750Ω ±5% 0.125W1/8W 0/-400ppm/℃ Φ1.70mm
替代型号CF18JT750R
型号/品牌 代替类型 替代型号对比

CF18JT750R

Stackpole Electronics

当前型号

当前型号

CF18JB750R

Stackpole Electronics

完全替代

CF18JT750R和CF18JB750R的区别

CFM14JT750R

Stackpole Electronics

功能相似

CF18JT750R和CFM14JT750R的区别
