CF18JT20K0

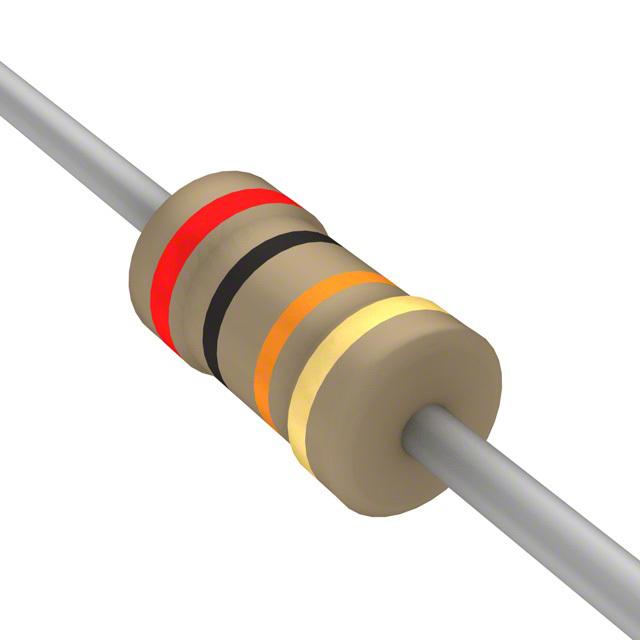

CF18JT20K0图片1

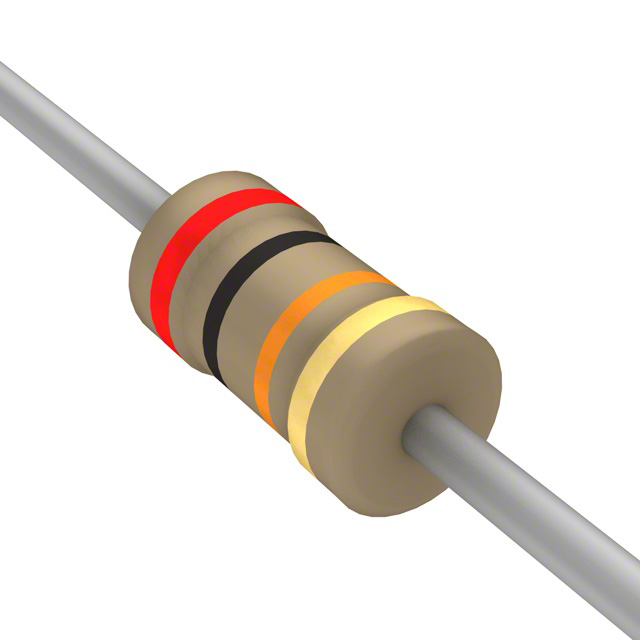

CF18JT20K0图片2

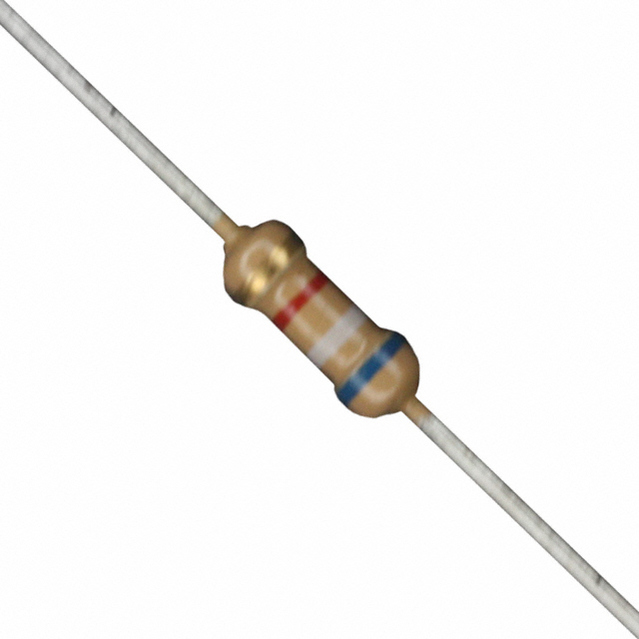

CF18JT20K0图片3
CF18JT20K0图片4
CF18JT20K0概述

CF 系列 0.125 W 20 kΩ ±5% 0/-500 ppm/°C 碳膜电阻

20 kOhms ±5% 0.125W, 1/8W Through Hole Resistor Axial Flame Retardant Coating, Safety


得捷:
RES 20K OHM 5% 1/8W AXIAL


艾睿:
If you are in the market for a cost-effective alternative to surface-mount components, the CF18JT20K0 fixed single through-hole resistor from SEI Stackpole Electronics could be of use in your design. This part has a power rating of 0.125 1/8 W. This product has a resistance value of 20K Ohm. Its temperature coefficient is -500 to 0 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The CF18JT20K0 part has an axial termination style. This device utilizes carbon film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This product is 3.3 mm long.


Verical:
Res Carbon Film 20K Ohm 5% 0.125W1/8W -500ppm/C to 0ppm/C Conformal Coated AXL T/R


CF18JT20K0中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.125 W

产品系列 CF

电阻 20 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 3.30 mm

直径 Φ1.70mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -500ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CF18JT20K0引脚图与封装图
CF18JT20K0引脚图
CF18JT20K0封装图

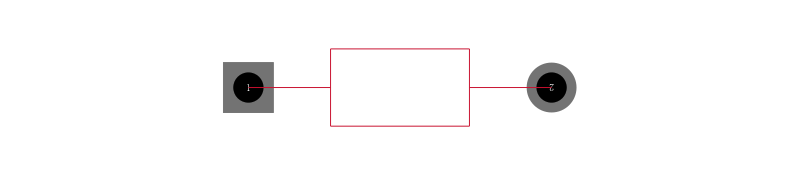

CF18JT20K0封装焊盘图
在线购买CF18JT20K0
型号: CF18JT20K0
制造商: Stackpole Electronics
描述:CF 系列 0.125 W 20 kΩ ±5% 0/-500 ppm/°C 碳膜电阻
替代型号CF18JT20K0
型号/品牌 代替类型 替代型号对比

CF18JT20K0

Stackpole Electronics

当前型号

当前型号

CF18JA20K0

Stackpole Electronics

完全替代

CF18JT20K0和CF18JA20K0的区别

CFM14JT20K0

Stackpole Electronics

类似代替

CF18JT20K0和CFM14JT20K0的区别
