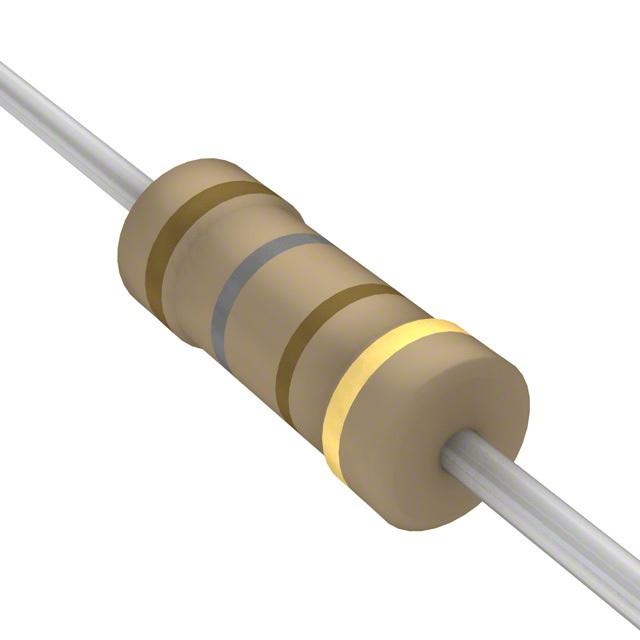

CF14JT180R

CF 系列 0.25 W 180Ω ±5% 0/-400 ppm/°C 碳膜电阻

180 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Flame Retardant Coating, Safety Carbon Film

得捷:
RES 180 OHM 5% 1/4W AXIAL

艾睿:

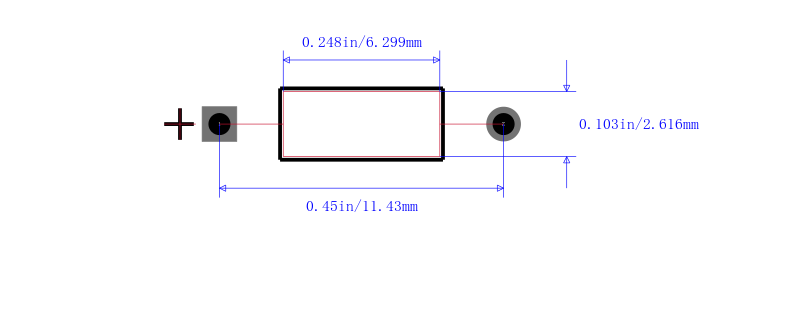

In addition to being very cost-effective, the CF14JT180R fixed single through-hole resistor, developed by SEI Stackpole Electronics, is very easy to solder onto any printed circuit board. This product has a resistance value of 180 Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is -400 to 0 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This product is 6 mm long. This part has an operating temperature of -55 to 155 °C. The CF14JT180R part has an axial termination style. This device utilizes carbon film technology.

安富利:
Res Carbon Film 180 Ohm 5% 1/4W -400ppm/°C to 0ppm/°C Conformal AXL Thru-Hole T/R

Chip1Stop:
Res Carbon Film 180 Ohm 5% 0.25W1/4W -400ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R

Verical:
Res Carbon Film 180 Ohm 5% 0.25W1/4W -400ppm/C to 0ppm/C Conformal Coated AXL T/R
