Res Thick Film 1206 221KΩ 1% 0.25W1/4W ±100ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel
±1% 0.25W,1/4W 芯片 1206(3216 公制) 防潮 厚膜
立创商城:
221kΩ ±1% 250mW
得捷:
RES SMD 221K OHM 1% 1/4W 1206
贸泽:
Thick Film Resistors - SMD 221K 1%
艾睿:

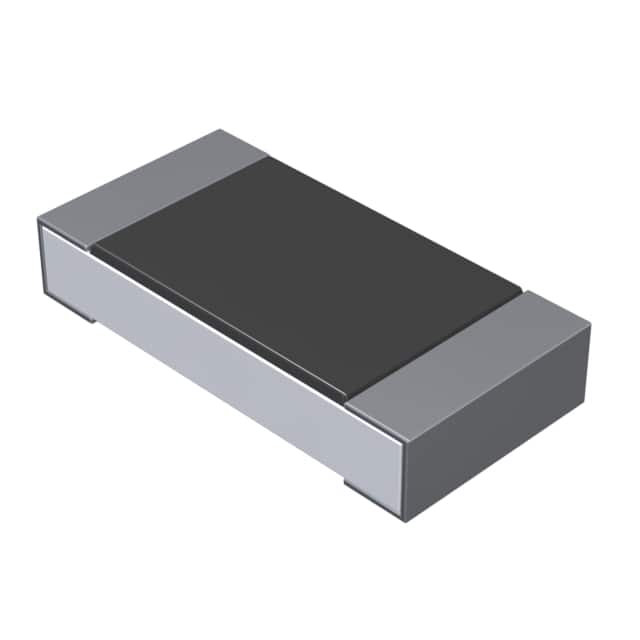

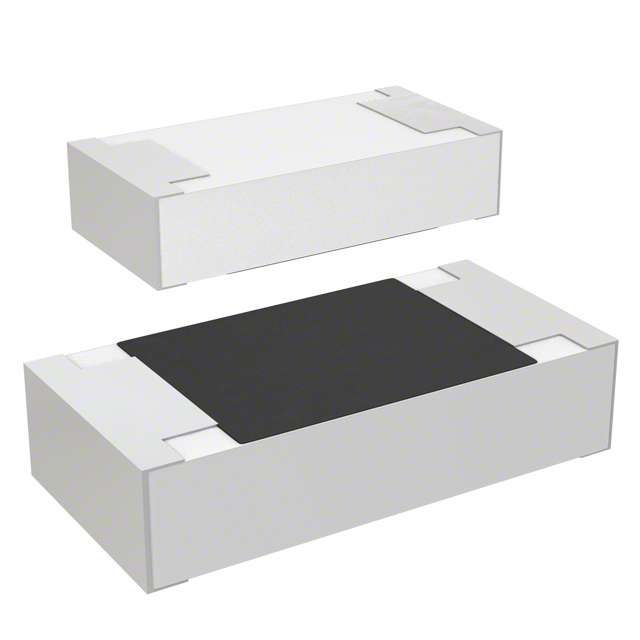

The CR1206-FX-2213ELF fixed single surface-mount resistor from Bourns makes it easy to add resistors to your circuit board. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 221K Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This device utilizes thick film technology. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep.
安富利:
Res Thick Film 1206 221K Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Paper Tape on Plastic Reel
Verical:
Res Thick Film 1206 221K Ohm 1% 0.25W1/4W ±100ppm/C Molded SMD T/R
MASTER:
Res Thick Film 1206 221K Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD T/R
Electro Sonic:
Res Thick Film 1206 221K Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD T/R
容差 ±1 %
额定功率 0.25 W
产品系列 CR
电阻 221 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装公制 3216
封装 1206
厚度 610 µm
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR1206-FX-2213ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
RC1206FR-07221KL 国巨 | 功能相似 | CR1206-FX-2213ELF和RC1206FR-07221KL的区别 |
CRCW1206221KFKEA 威世 | 功能相似 | CR1206-FX-2213ELF和CRCW1206221KFKEA的区别 |
ERJ8ENF2213V 松下 | 功能相似 | CR1206-FX-2213ELF和ERJ8ENF2213V的区别 |
