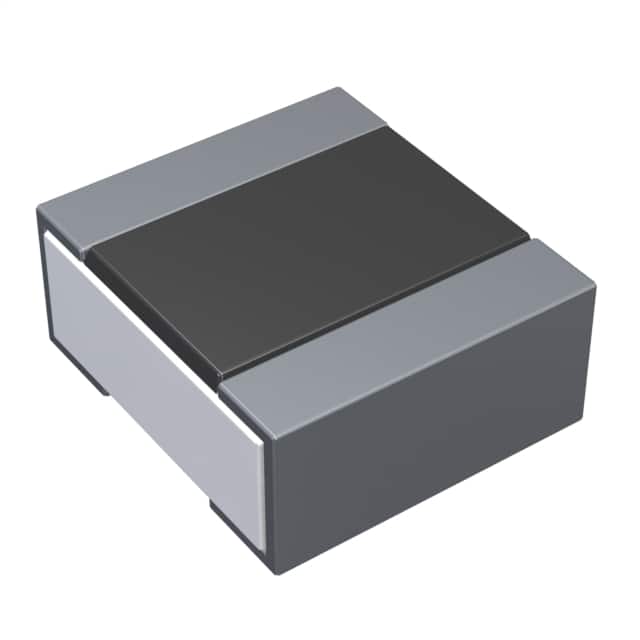

CR0402-FX-1003GLF

SMD片式电阻, 0402 [1005公制], 100 kohm, CR Series, 50 V, 厚膜, 62.5 mW

* 底部电极宽度具有严格公差

.

适用于所有类型的焊接工艺

.

3层工艺, 镍屏障防止浸出, 并提供出色的可焊性

得捷:
RES SMD 100K OHM 1% 1/16W 0402

欧时:
Res 0402 100k 1% 63mW TC100

艾睿:
The CR0402-FX-1003GLF fixed single surface-mount resistor from Bourns makes it easy to add resistors to your circuit board. This part has a power rating of 0.063 1/16 W. This product has a resistance value of 100K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep.

Verical:
Res Thick Film 0402 100K Ohm 1% 0.063W1/16W ±100ppm/C Pad SMD T/R

MASTER:
Res Thick Film 0402 100K Ohm 1% 0.063W1/16W ±100ppm/°C Pad SMD T/R

Electro Sonic:
Res Thick Film 0402 100K Ohm 1% 0.063W1/16W ±100ppm/°C Pad SMD T/R
