CR0402-FX-3482GLF

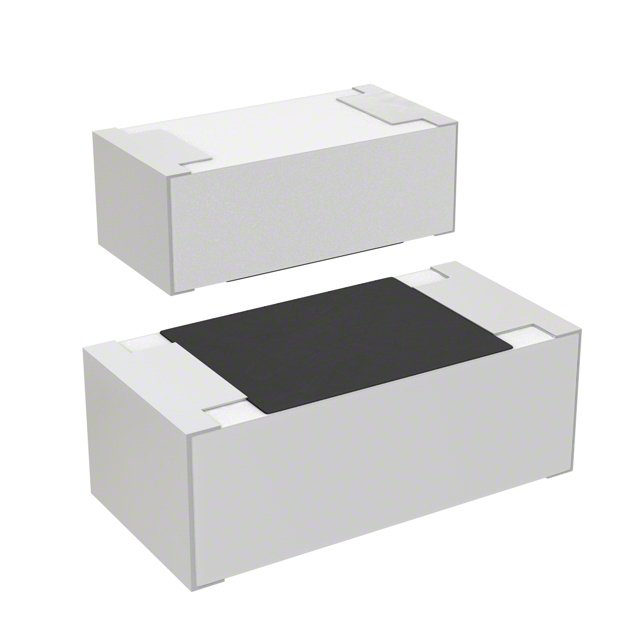

CR0402-FX-3482GLF图片1
CR0402-FX-3482GLF图片2
CR0402-FX-3482GLF图片3
CR0402-FX-3482GLF图片4
CR0402-FX-3482GLF图片5
CR0402-FX-3482GLF图片6
CR0402-FX-3482GLF概述

Res Thick Film 0402 34.8KΩ 1% 0.063W1/16W ±100ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel

34.8 kOhms ±1% 0.063W,1/16W 芯片 0402(1005 公制) - 厚膜


得捷:
RES SMD 34.8K OHM 1% 1/16W 0402


贸泽:
Thick Film Resistors - SMD 34.8KOHM 1/16WATT 1%


艾睿:
This is a CR0402-FX-3482GLF fixed single surface-mount resistor from Bourns. This product has a resistance value of 34.8K Ohm. This dependable part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 1%. This device is made with thick film technology. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This part has an operating temperature of -55 to 155 °C.


安富利:
Res Thick Film 0402 34.8K Ohm 1% 1/16W ±100ppm/°C Molded SMD SMD Paper Tape on Plastic Reel


Electro Sonic:
Res Thick Film 0402 34.8K Ohm 1% 0.063W1/16W ±100ppm/°C Pad SMD T/R


CR0402-FX-3482GLF中文资料参数规格
技术参数

额定功率 0.063 W

产品系列 CR

电阻 34.8 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.35 mm

封装公制 1005

封装 0402

厚度 356 µm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 10000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CR0402-FX-3482GLF
型号: CR0402-FX-3482GLF
制造商: Bourns J.W. Miller 伯恩斯
描述:Res Thick Film 0402 34.8KΩ 1% 0.063W1/16W ±100ppm/℃ Molded SMD SMD Paper Tape on Plastic Reel
