8位缓冲器/线路驱动器，具有三态输出 8-BIT BUFFERS/LINE DRIVERS WITH 3-STATE OUTPUTS
The \x92FCT240T devices are octal buffers and line drivers designed to be employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. These devices provide speed and drive capabilities equivalent to their fastest bipolar logic counterparts, while reducing power consumption. The input and output voltage levels allow direct interface with TTL, NMOS, and CMOS devices without external components.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. View datasheet View product folder
电源电压DC 5.00 V, 5.25 V max
输出接口数 8
电路数 2
通道数 8
位数 8
电压波节 5.00 V
静态电流 100 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 20

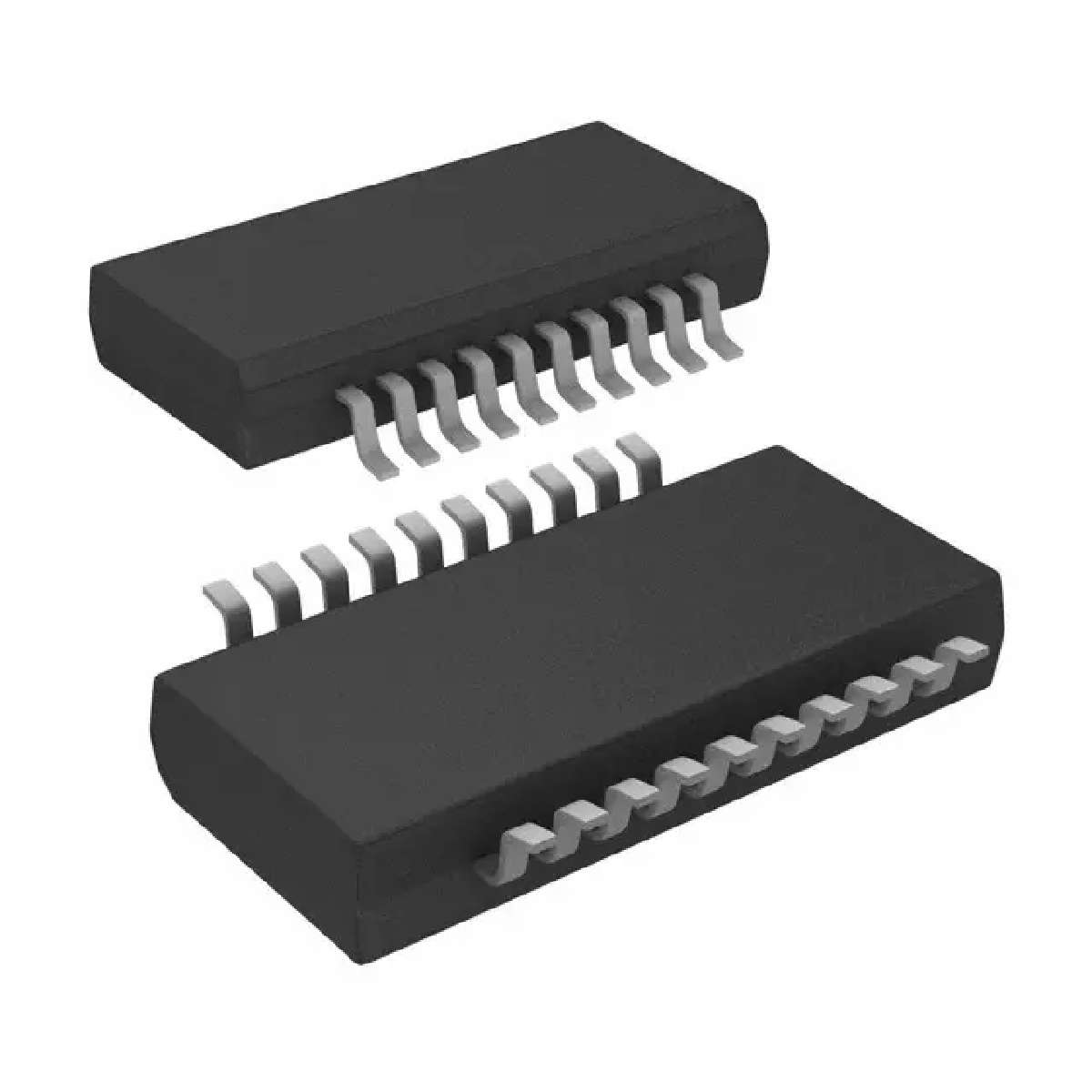

封装 SSOP-20
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CY74FCT240ATQCT TI 德州仪器 | 当前型号 | 当前型号 |
74FCT240ATQG 艾迪悌 | 类似代替 | CY74FCT240ATQCT和74FCT240ATQG的区别 |
CY74FCT240ATQCTG4 德州仪器 | 类似代替 | CY74FCT240ATQCT和CY74FCT240ATQCTG4的区别 |
SN74LVC3G17DCTRE4 德州仪器 | 功能相似 | CY74FCT240ATQCT和SN74LVC3G17DCTRE4的区别 |
