CF18JT180K

180kΩ ±5% 0.125W1/8W 0/-850ppm/℃ Φ1.70mm

±5% 0.125W，1/8W 轴向 通孔器 阻燃涂层，安全 炭膜

得捷:
RES 180K OHM 5% 1/8W AXIAL

艾睿:

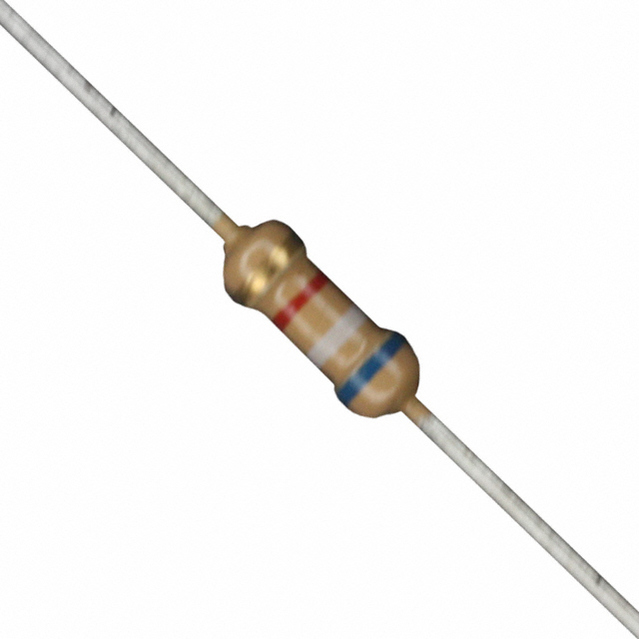

Do your through-hole printed circuit specifications require some resistance between components? SEI Stackpole Electronics can offer you a cost-effective solution with their CF18JT180K fixed single through-hole resistor. This dependable part has a power rating of 0.125 1/8 W. This product has a resistance value of 180K Ohm. Its temperature coefficient is -850 to 0 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 3.3 mm long. The CF18JT180K part has an axial termination style. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device utilizes carbon film technology.

安富利:
Res Carbon Film 180K Ohm 5% 1/8W -850ppm/°C to 0ppm/°C Conformal AXL Thru-Hole T/R

Chip1Stop:
Res Carbon Film 180K Ohm 5% 0.125W1/8W -850ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R

Verical:
Res Carbon Film 180K Ohm 5% 0.125W1/8W -850ppm/C to 0ppm/C Conformal Coated AXL T/R
