CF18JT1K10

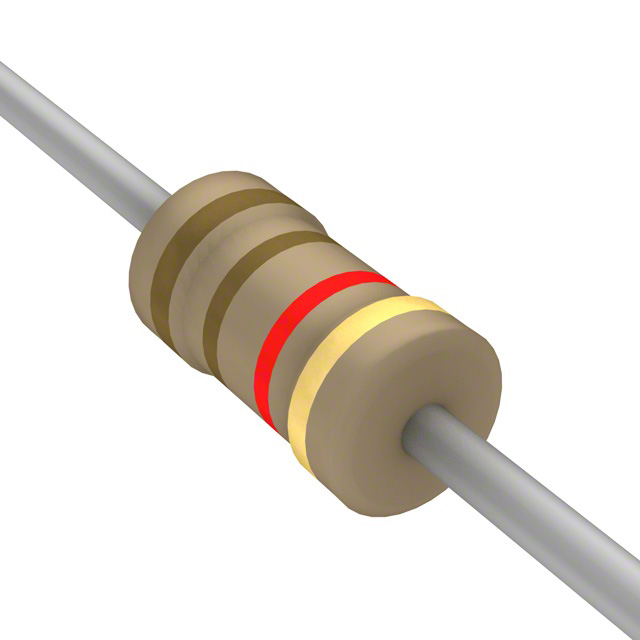

CF18JT1K10图片1
CF18JT1K10图片2
CF18JT1K10图片3
CF18JT1K10概述

1.1kΩ ±5% 0.125W1/8W 0/-400ppm/℃ Φ1.70mm

1.1 kOhms ±5% 0.125W,1/8W 轴向 通孔器 阻燃涂层,安全 炭膜


得捷:
RES 1.1K OHM 5% 1/8W AXIAL


艾睿:
Do your through-hole printed circuit specifications require some resistance between components? SEI Stackpole Electronics can offer you a cost-effective solution with their CF18JT1K10 fixed single through-hole resistor. This product has a resistance value of 1.1K Ohm. This dependable part has a power rating of 0.125 1/8 W. Its temperature coefficient is -400 to 0 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. The CF18JT1K10 part has an axial termination style. This part has an operating temperature of -55 to 155 °C. This device utilizes carbon film technology. This product is 3.3 mm long. It has a tolerance of 5%.


Verical:
Res Carbon Film 1.1K Ohm 5% 0.125W1/8W -400ppm/C to 0ppm/C Conformal Coated AXL T/R


CF18JT1K10中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.125 W

产品系列 CF

电阻 1.1 KΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 3.30 mm

直径 Φ1.70mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CF18JT1K10引脚图与封装图
CF18JT1K10引脚图
CF18JT1K10封装图
CF18JT1K10封装焊盘图
在线购买CF18JT1K10
型号: CF18JT1K10
制造商: Stackpole Electronics
描述:1.1kΩ ±5% 0.125W1/8W 0/-400ppm/℃ Φ1.70mm
替代型号CF18JT1K10
型号/品牌 代替类型 替代型号对比

CF18JT1K10

Stackpole Electronics

当前型号

当前型号

CF18JB1K10

Stackpole Electronics

完全替代

CF18JT1K10和CF18JB1K10的区别

CFM14JT1K10

Stackpole Electronics

类似代替

CF18JT1K10和CFM14JT1K10的区别
