CI100505-R10J

多层片状电感器 Multi-Layer Chip Inductors

100nH Unshielded Multilayer Inductor 100mA 1.5Ohm Max

立创商城:
100nH ±5% 1.5Ω

得捷:
FIXED IND 100NH 100MA 1.5OHM SMD

艾睿:

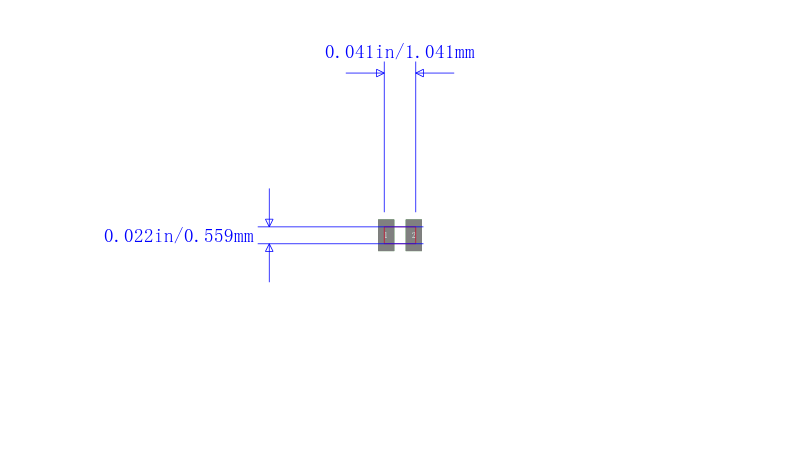

An ideal space-saving electronic component is this chip CI100505-R10J surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 1.5 Ohm. It has a tolerance of 5%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 550M Hz. It has an inductance of 100n H. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

安富利:
Ind Chip Multi-Layer 100nH 5% 100MHz 8Q-Factor Ceramic 100mA 0402 T/R

Chip1Stop:
Inductor Chip Multi-Layer 100nH 5% 100MHz 8Q-Factor Ceramic 100mA 1.5Ohm DCR 0402 T/R

Verical:
Inductor RF Multi-Layer 0.1uH 5% 100MHz 8Q-Factor Ceramic 0.1A 1.5Ohm DCR 0402 T/R

MASTER:
Inductor RF Multi-Layer 0.1uH 5% 100MHz 8Q-Factor Ceramic 0.1A 1.5Ohm DCR 0402 T/R

Electro Sonic:
Inductor RF Multi-Layer 0.1uH 5% 100MHz 8Q-Factor Ceramic 0.1A 1.5Ohm DCR 0402 T/R
