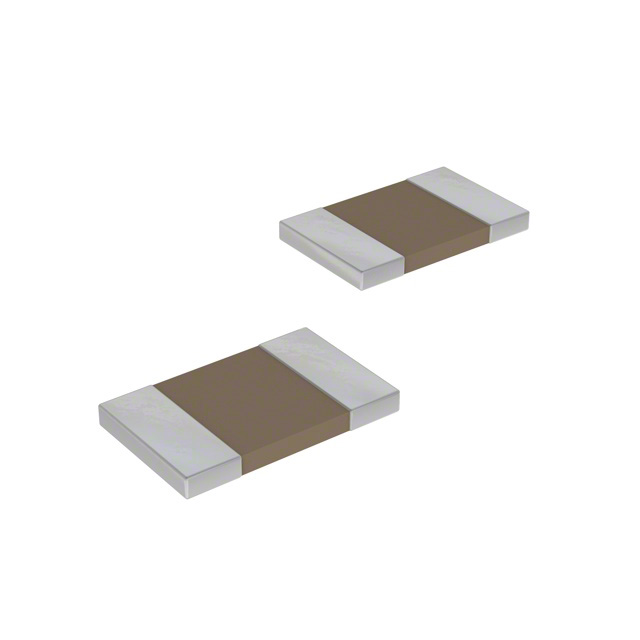

铁氧体多层片式电感器 Ferrite Multi-Layer Chip Inductors
屏蔽 多层 器 500 毫欧最大 0805(2012 公制)
立创商城:
220nH ±10% 500mΩ
得捷:
FIXED IND 220NH 250MA 500MOHM SM
贸泽:
Fixed Inductors .22uH 10% MULTI LAYER
艾睿:
This chip CV201210-R22K surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 500m Ohm. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 170M Hz. It has an inductance of 220n H. It has a tolerance of 10%. This product is 2.2 mm long, 1.05 mm tall and 1.45 mm deep. This device is made with multi-layer technology.
安富利:
Ind Chip Shielded Multi-Layer 220nH 10% 25MHz 20Q-Factor Ferrite 250mA 0805 T/R
Chip1Stop:
Ind Chip Shielded Multi-Layer 220nH 10% 25MHz 20Q-Factor Ferrite 250mA 2.0 x 1.2 mm T/R
Verical:
Inductor Chip Shielded Multi-Layer 220nH 10% 25MHz 20Q-Factor Ferrite 250mA 500mOhm DCR 0805 T/R
Electro Sonic:
Inductor Chip Shielded Multi-Layer 220nH 5% 25MHz 20Q-Factor Ferrite 250mA 500mOhm DCR 0805 T/R
Win Source:
FIXED IND 220NH 250MA 500MOHM SM / 220 nH Shielded Multilayer Inductor 250 mA 500mOhm Max 0805 2012 Metric
额定电流 250 mA
容差 ±10 %
电感 220 nH
自谐频率 170 MHz
Q值 20
电感公差 ±10 %
测试频率 25 MHz
电阻DC) ≤500 mΩ
工作温度Max 125 ℃
工作温度Min 55 ℃
电阻DC Max 500 mΩ
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.05 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CV201210-R22K Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
PM0805G-R22J 伯恩斯 | 类似代替 | CV201210-R22K和PM0805G-R22J的区别 |
AIML-0805-R22K-T Abracon | 功能相似 | CV201210-R22K和AIML-0805-R22K-T的区别 |
