CAY16-512J4LF

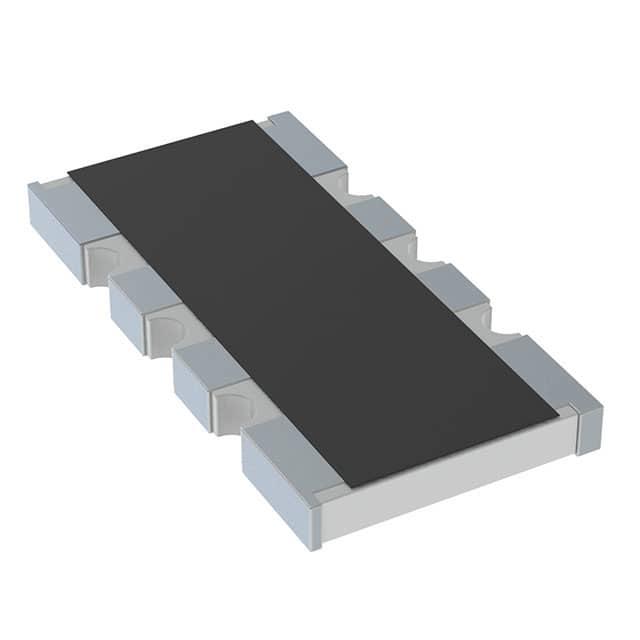

CAY16-512J4LF图片1

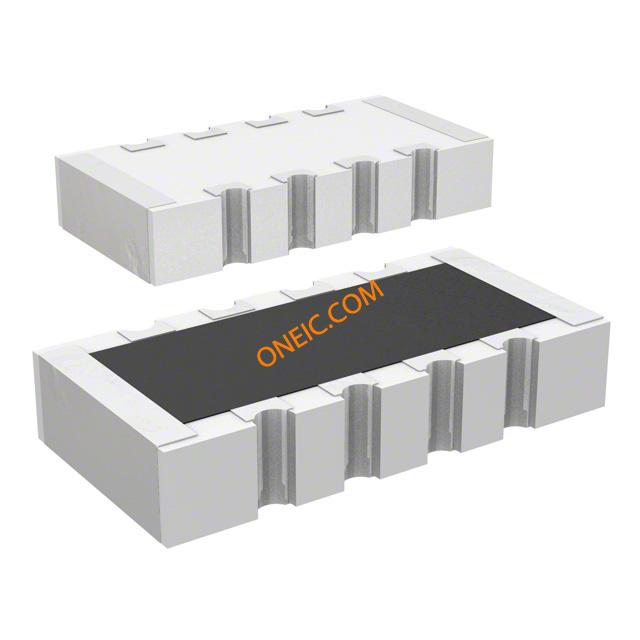

CAY16-512J4LF图片2
CAY16-512J4LF图片3
CAY16-512J4LF图片4
CAY16-512J4LF图片5
CAY16-512J4LF图片6
CAY16-512J4LF图片7
CAY16-512J4LF图片8
CAY16-512J4LF图片9
CAY16-512J4LF图片10
CAY16-512J4LF概述

固定阵列电阻, 5.1 kohm, CAY16 Series, 4 元件, 隔离, 1206 [3216公制], 8 引脚

5.1k 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络,阵列 ±200ppm/°C 1206(3216 公制),凸面,长边端子


得捷:
RES ARRAY 4 RES 5.1K OHM 1206


e络盟:
固定阵列电阻, 5.1 kohm, CAY16 Series, 4 元件, 隔离, 1206 [3216公制], 8 引脚


艾睿:
Pack multiple resistors into a single chip with this CAY16-512J4LF resistor array from Bourns. This product&s;s 4 resistors have a value of 5.1K Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The CAY16-512J4LF part has a convex termination style. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. This device is made with thick film technology. It has a tolerance of 5%.


安富利:
Res Thick Film Array 5.1K Ohm 5% ISOL Molded 8-Pin 1206 Convex SMD Paper T/R


Chip1Stop:
Res Thick Film Array 5.1K Ohm 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R


Verical:
Res Thick Film Array 5.1K Ohm 5% 0.25W1/4W ±200ppm/C ISOL 8-Pin 12064 X 0603 Convex SMD T/R


Electro Sonic:
Res Thick Film Array 5.1K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD T/R


CAY16-512J4LF中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

电路数 4

针脚数 8

电阻 5.1 kΩ

阻值偏差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

引脚数 8

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.5 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CAY16-512J4LF
型号: CAY16-512J4LF
制造商: Bourns J.W. Miller 伯恩斯
描述:固定阵列电阻, 5.1 kohm, CAY16 Series, 4 元件, 隔离, 1206 [3216公制], 8 引脚
替代型号CAY16-512J4LF
型号/品牌 代替类型 替代型号对比

CAY16-512J4LF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CAY16-512J4

伯恩斯

完全替代

CAY16-512J4LF和CAY16-512J4的区别

EXB38V512JV

松下

功能相似

CAY16-512J4LF和EXB38V512JV的区别
