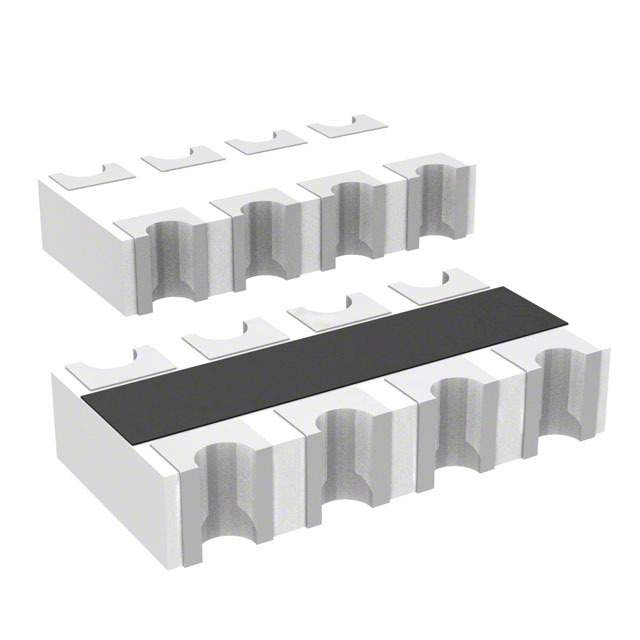

Res Thick Film Array 68KΩ 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R
By combining multiple resistors into a single chip, the resistor array, developed by Bourns, can help you save space and power in your circuit design. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product"s 4 resistors have a value of 68K Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product"s terminal pitch is 0.8 mm. This product is 3.2 mm long, 0.5 mm tall and 1.55 mm deep. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. It has a tolerance of 5%. The CAT16-683J4LF part has a concave termination style.
容差 ±5 %
额定功率 0.25 W
电路数 4
电阻 68 kΩ
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.55 mm
高度 0.5 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT16-683J4LF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
NRSN06I4J683TRF NIC | 功能相似 | CAT16-683J4LF和NRSN06I4J683TRF的区别 |
