CS160808-1R0K

铁氧体多层片式电感器 Ferrite Multi-Layer Chip Inductors

屏蔽 多层 器 500 毫欧最大 0603（1608 公制）

得捷:
FIXED IND 1UH 100MA 500 MOHM SMD

e络盟:
高频电感器, 1 µH, CS160808 Series, 100 mA, 0603 [1608 公制], 屏蔽, 0.5 ohm

艾睿:

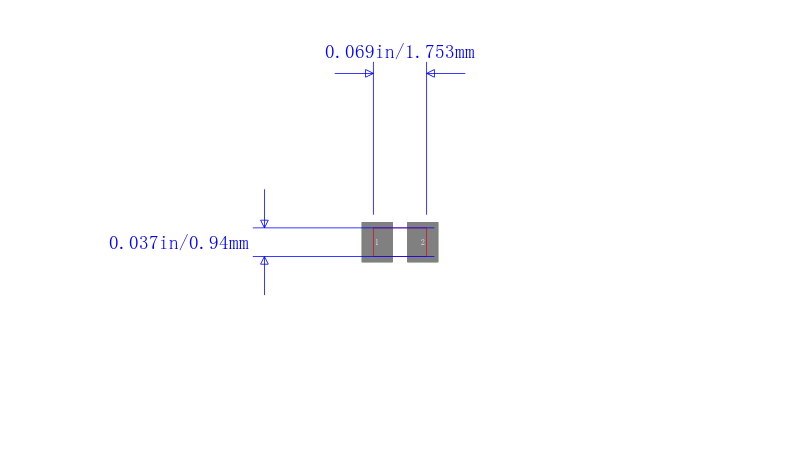

Make any circuit look clean and compact using this rf chip CS160808-1R0K surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 10%. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 70M Hz. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 500m Ohm. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. This device utilizes multi-layer technology. It has an inductance of 1u H.

安富利:
Ind Chip Shielded Multi-Layer 1uH 10% 10MHz 50Q-Factor Ferrite 100mA 0603 T/R

Chip1Stop:
Inductor RF Chip Shielded Multi-Layer 1uH 10% 10MHz 50Q-Factor Ferrite 100mA 500mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Shielded Multi-Layer 1uH 10% 10MHz 50Q-Factor Ferrite 100mA 500mOhm DCR 0603 T/R

Electro Sonic:
Inductor RF Chip Shielded Multi-Layer 1uH 10% 10MHz 50Q-Factor Ferrite 100mA 500mOhm DCR 0603 T/R
