8位缓冲器/线路驱动器 8-Bit Buffers/Line Drivers
Leading the input to the transmission line this buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 5.00 V, 5.25 V max
输出接口数 8
通道数 8
位数 8
电压波节 5.00 V
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

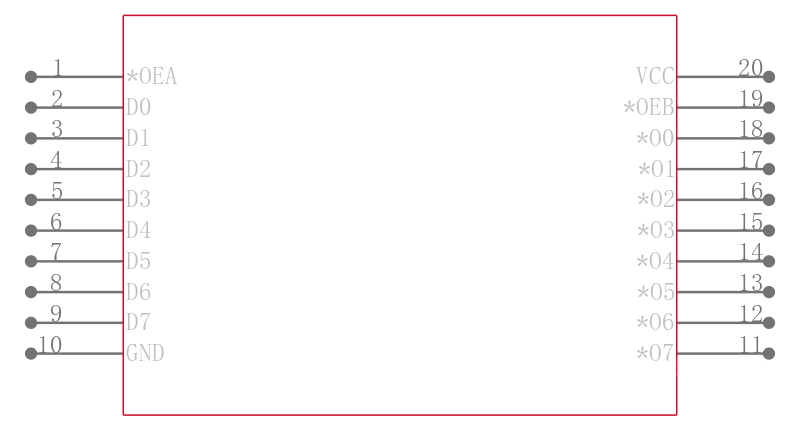

引脚数 20

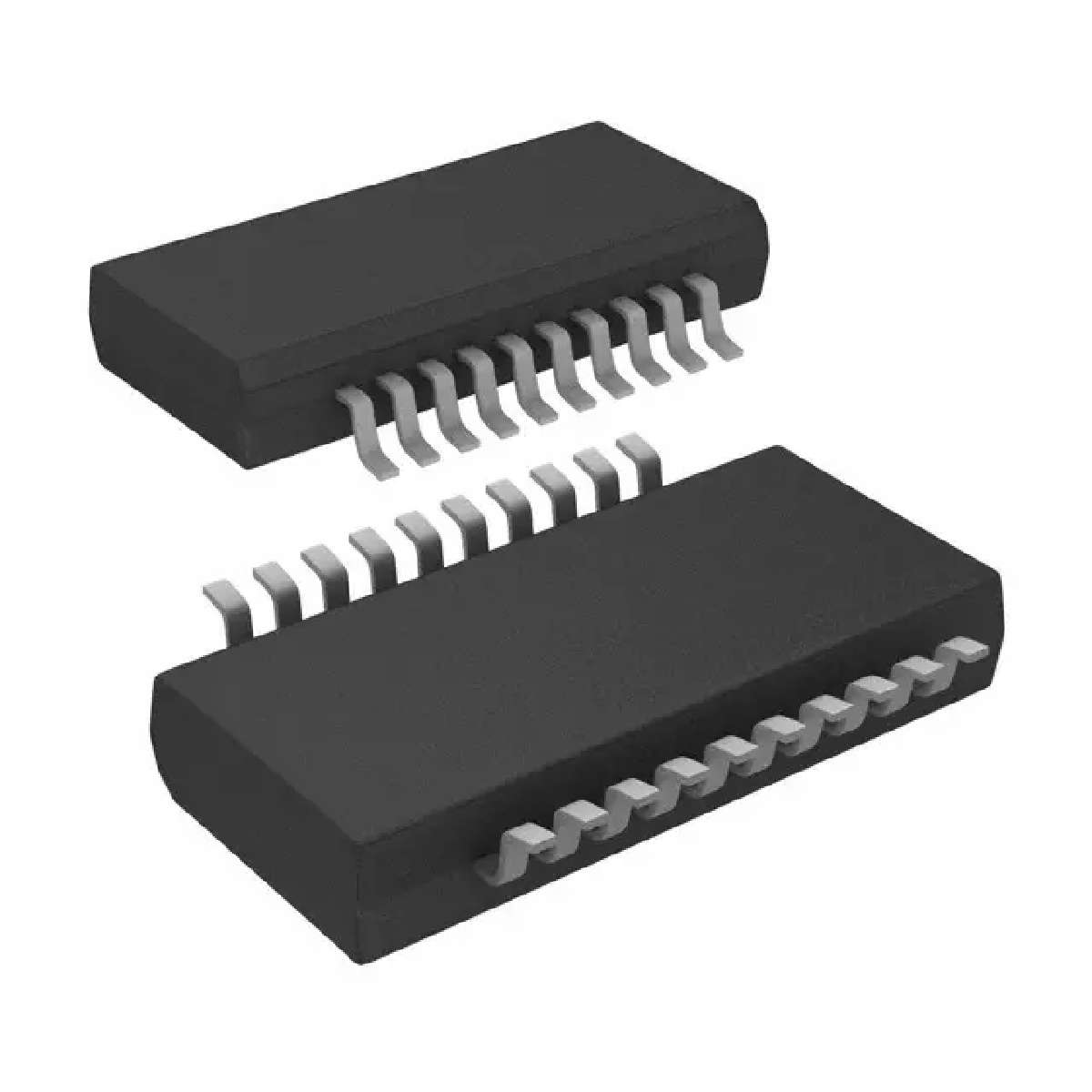

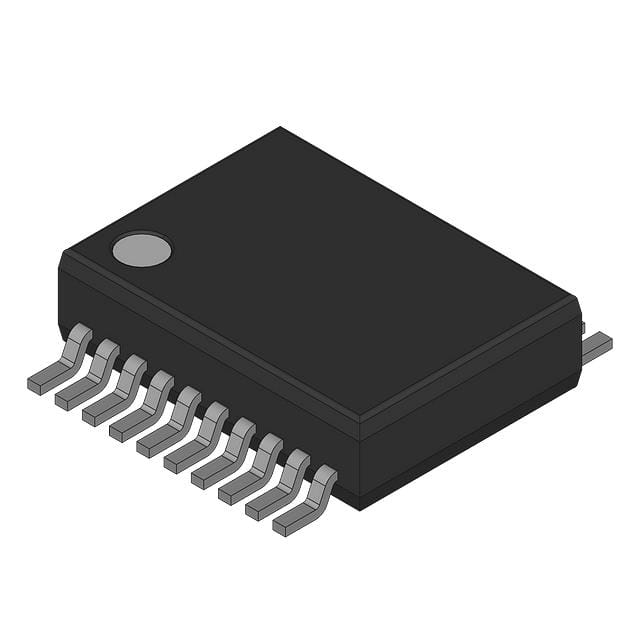

封装 SSOP-20
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CY74FCT541CTQCT TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT541ATQCT 德州仪器 | 完全替代 | CY74FCT541CTQCT和CY74FCT541ATQCT的区别 |
CY74FCT541CTQCTE4 德州仪器 | 类似代替 | CY74FCT541CTQCT和CY74FCT541CTQCTE4的区别 |
