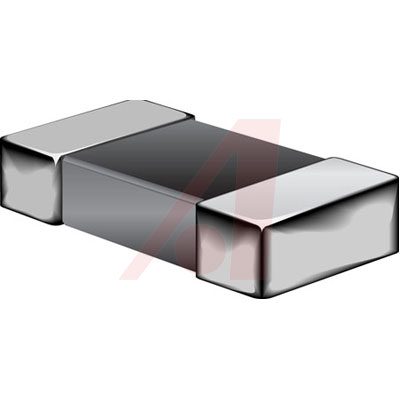

BOURNS  CVH252009-4R7M  表面贴装高频电感器, CVH252009系列, 4.7 µH, ± 20%, 1008 [2520 公制], 25 MHz, 0.11 ohm

**Features:

**

* Monolithic Construction Offering High Reliability

* Magnetically Shielded Construction Providing Low Radiation

* Low DC Resistance

* Low Profile, 1008 Size 2.5 × 2 × 0.9 mm**

Applications:

**

* DC/DC Converters For: Smart Phones, DVCs/DSCs, Tablets, HDDs/SSDs and Mobile Electronic Devices


得捷:
FIXED IND 4.7UH 1.1A 110MOHM SMD


欧时:
Inductor chip multilayer 4.7uH 20% IDC18


立创商城:
4.7uH ±20% 1.1A 110mΩ


艾睿:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 0.11Ohm DCR 1008 T/R


Allied Electronics:
Inductor; 4.7uH; 1A; 1MHz; 20%


安富利:
Ind Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 1008 T/R


Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 110mOhm DCR 1008 T/R


Verical:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 0.11Ohm DCR 1008 T/R


Newark:
# BOURNS  CVH252009-4R7M  Surface Mount High Frequency Inductor, CVH252009 Series, 4.7 µH, 1.1 A, 1008 [2516 Metric]


MASTER:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 110mOhm DCR 1008 T/R


Electro Sonic:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 110mOhm DCR 1008 T/R


CVH252009-4R7M中文资料参数规格
技术参数

额定电流 1.1 A

容差 ±20 %

电感 4.7 µH

自谐频率 25 MHz

电感公差 ±20 %

测试频率 1 MHz

电阻DC) ≤110 mΩ

额定电流DC 1.1 A

工作温度Max 125 ℃

工作温度Min -55 ℃

电阻DC Max 0.11 Ω

封装参数

安装方式 Surface Mount

封装 1008

外形尺寸

长度 2.7 mm

宽度 2.2 mm

高度 1 mm

封装 1008

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

数据手册

CVH252009-4R7M引脚图与封装图

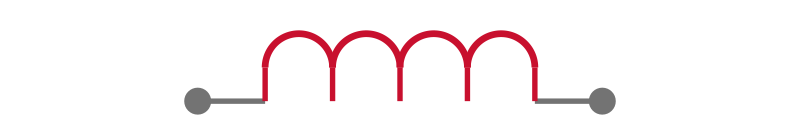

CVH252009-4R7M引脚图

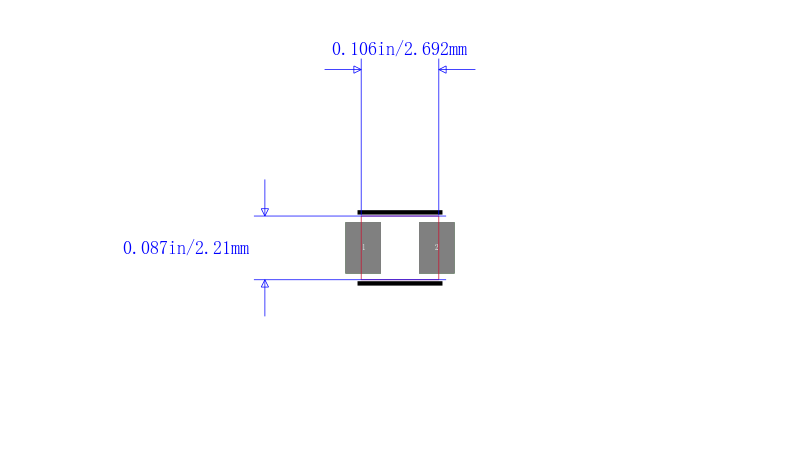

CVH252009-4R7M封装图

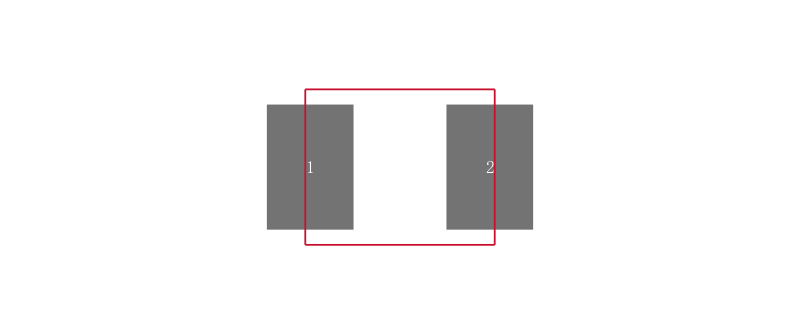

CVH252009-4R7M封装焊盘图
在线购买CVH252009-4R7M
型号: CVH252009-4R7M
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  CVH252009-4R7M  表面贴装高频电感器, CVH252009系列, 4.7 µH, ± 20%, 1008 [2520 公制], 25 MHz, 0.11 ohm
替代型号CVH252009-4R7M
型号/品牌 代替类型 替代型号对比

CVH252009-4R7M

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

LQM2HPN4R7MG0L

村田

功能相似

CVH252009-4R7M和LQM2HPN4R7MG0L的区别
