CFM12JT150K

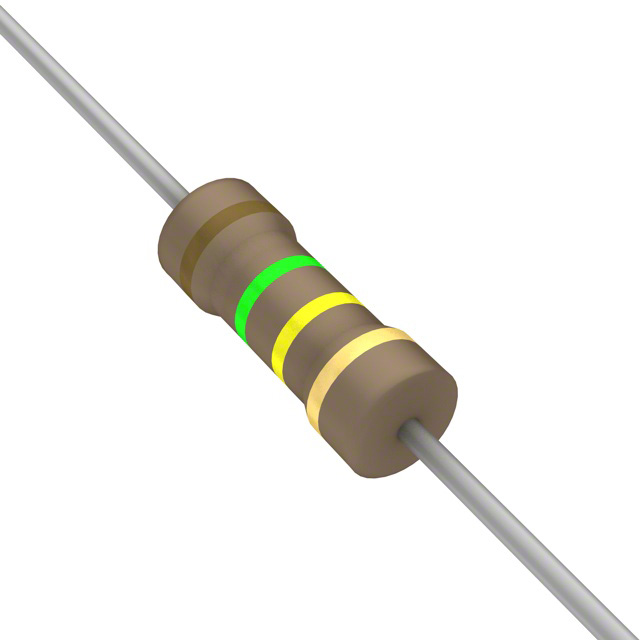

CFM12JT150K图片1
CFM12JT150K图片2
CFM12JT150K图片3
CFM12JT150K概述

150kΩ ±5% 0.5W1/2W 0/-850ppm/℃ Φ2.30mm

150 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, Safety


得捷:
RES 150K OHM 5% 1/2W AXIAL


艾睿:
If you are in the market for a cost-effective alternative to surface-mount components, the CFM12JT150K fixed single through-hole resistor from SEI Stackpole Electronics could be of use in your design. This part has a power rating of 0.5 1/2 W. This product has a resistance value of 150K Ohm. Its temperature coefficient is -850 to 0 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 5%. This device is made with carbon film technology. This product is 6 mm long. The CFM12JT150K part has an axial termination style. This part has an operating temperature of -55 to 155 °C.


Chip1Stop:
Res Carbon Film 150K Ohm 5% 0.5W1/2W -850ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R


Verical:
Res Carbon Film 150K Ohm 5% 0.5W1/2W -850ppm/C to 0ppm/C Conformal Coated AXL T/R


CFM12JT150K中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.5 W

产品系列 CFM

电阻 150 KΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 6.5 mm

直径 Φ2.30mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -850ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CFM12JT150K引脚图与封装图
CFM12JT150K引脚图
CFM12JT150K封装图
CFM12JT150K封装焊盘图
在线购买CFM12JT150K
型号: CFM12JT150K
制造商: Stackpole Electronics
描述:150kΩ ±5% 0.5W1/2W 0/-850ppm/℃ Φ2.30mm
替代型号CFM12JT150K
型号/品牌 代替类型 替代型号对比

CFM12JT150K

Stackpole Electronics

当前型号

当前型号

CF14JT150K

Stackpole Electronics

类似代替

CFM12JT150K和CF14JT150K的区别

ERD-S1TJ154V

松下

类似代替

CFM12JT150K和ERD-S1TJ154V的区别
