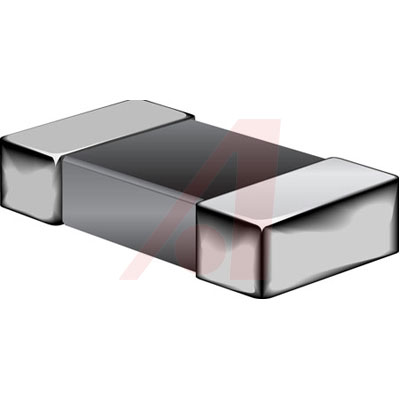

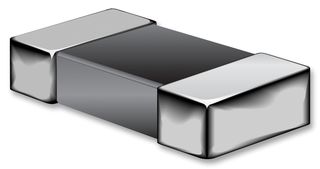

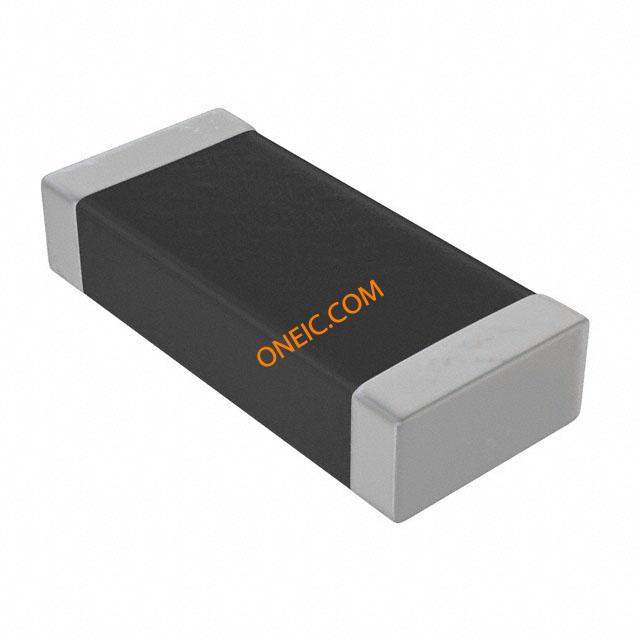

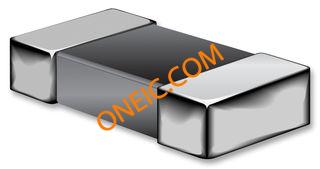

BOURNS CVH252009-R47M 表面贴装高频电感器, CVH252009系列, 470 nH, ± 20%, 1008 [2520 公制], 100 MHz, 0.04 ohm
**Features:
**
* Monolithic Construction Offering High Reliability
* Magnetically Shielded Construction Providing Low Radiation
* Low DC Resistance
* Low Profile, 1008 Size 2.5 × 2 × 0.9 mm**
Applications:
**
* DC/DC Converters For: Smart Phones, DVCs/DSCs, Tablets, HDDs/SSDs and Mobile Electronic Devices
得捷:
FIXED IND 470NH 1.8A 40 MOHM SMD
立创商城:
470nH ±20% 110mΩ
贸泽:
Fixed Inductors 0.47uH 1MHz 20%
e络盟:
高频电感器, 470 nH, CVH252009系列, 1.8 A, 1008 [2520 公制], 多层, 0.04 ohm
艾睿:
Make any circuit look clean and compact using this power chip CVH252009-R47M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 40m Ohm. This device is made with multi-layer technology. This product is 2.7 mm long, 1 mm tall and 2.2 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 100MTyp Hz. It has an inductance of 470n H.
Allied Electronics:
Inductor; 0.47uH; 1.8A; 1MHz; 20%
安富利:
Ind Power Chip Shielded Multi-Layer 470nH 20% 1MHz Ferrite 1.8A 1008 T/R
Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 470nH 20% 1MHz Ferrite 1.8A 40mOhm DCR 1008 T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 0.47uH 20% 1MHz Ferrite 1.8A 0.04Ohm DCR 1008 T/R
Newark:
# BOURNS CVH252009-R47M Surface Mount High Frequency Inductor, CVH252009 Series, 470 nH, 20%, 1008 [2520 Metric], 100 MHz
MASTER:
Inductor Power Chip Shielded Multi-Layer 470nH 20% 1MHz Ferrite 1.8A 40mOhm DCR 1008 T/R
Electro Sonic:
Inductor Power Chip Shielded Multi-Layer 470nH 20% 1MHz Ferrite 1.8A 40mOhm DCR 1008 T/R
额定电流 1.8 A
容差 ±20 %
电感 470 nH
自谐频率 100 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤40 mΩ
额定电流DC 1.8 A
工作温度Max 125 ℃
工作温度Min 55 ℃
电阻DC Max 0.04 Ω
安装方式 Surface Mount

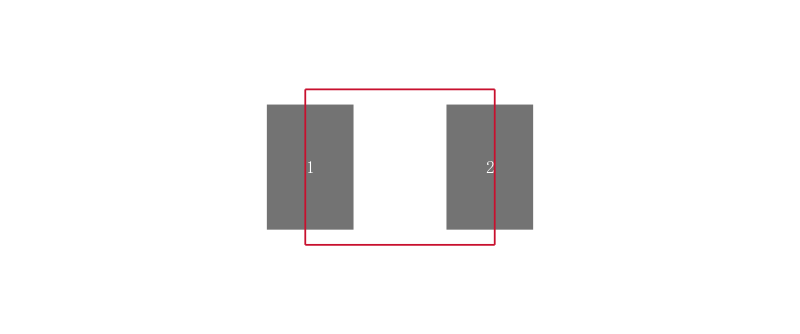

封装 1008

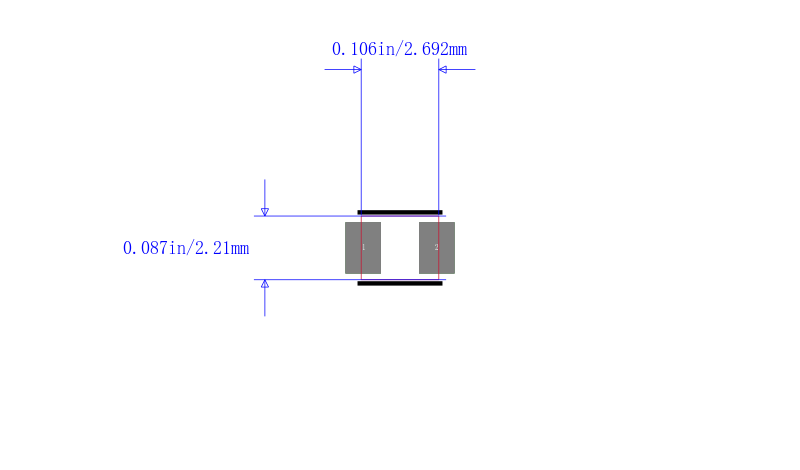

长度 2.5 mm
宽度 2 mm
高度 1 mm
封装 1008
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
