CFM12JT100K

100kΩ ±5% 0.5W1/2W 0/-850ppm/℃ Φ2.30mm

100 kOhms ±5% 0.5W，1/2W 轴向 通孔器 阻燃涂层，安全 炭膜

得捷:
RES 100K OHM 5% 1/2W AXIAL

艾睿:

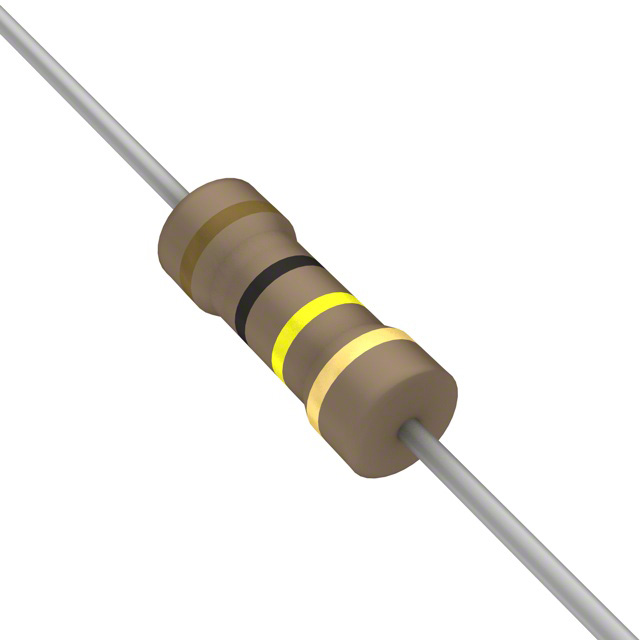

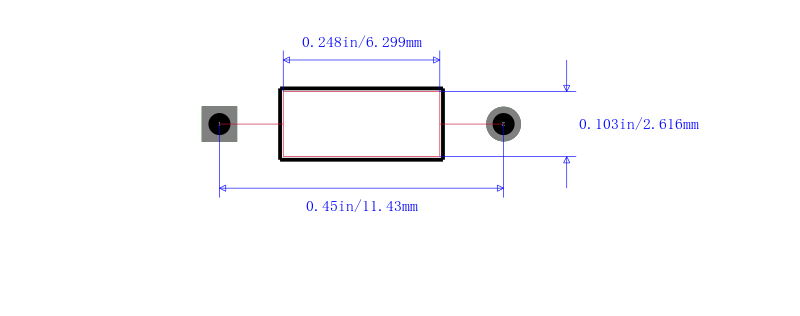

In addition to being very cost-effective, the CFM12JT100K fixed single through-hole resistor, developed by SEI Stackpole Electronics, is very easy to solder onto any printed circuit board. This product has a resistance value of 100K Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is -850 to 0 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 5%. This product is 6 mm long. This part has an operating temperature of -55 to 155 °C. This device is made with carbon film technology. The CFM12JT100K part has an axial termination style.

Chip1Stop:
Res Carbon Film 100K Ohm 5% 0.5W1/2W -850ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R

Verical:
Res Carbon Film 100K Ohm 5% 0.5W1/2W -850ppm/C to 0ppm/C Conformal Coated AXL T/R
