CW252016-4R7J

高Q值的片式电感器 High Q Chip Inductors

4.7µH Unshielded Inductor 175mA 4Ohm Max 1008 2520 Metric

立创商城:
4.7uH ±5% 4Ω

得捷:
FIXED IND 4.7UH 175MA 4 OHM SMD

艾睿:

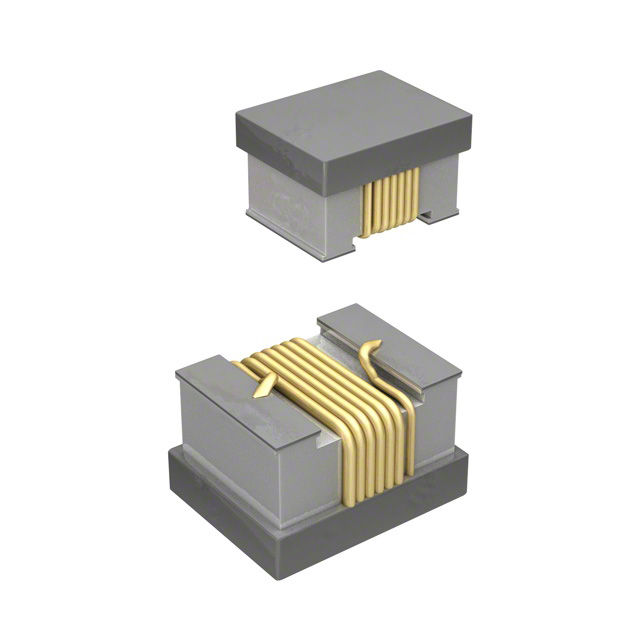

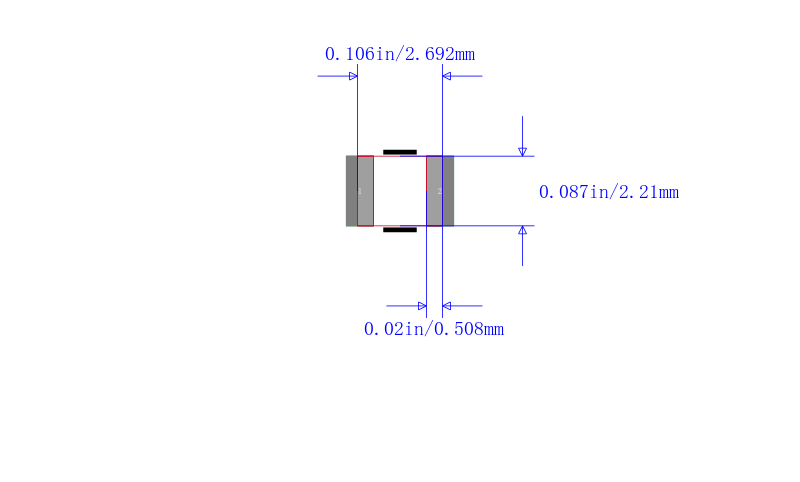

An ideal space-saving electronic component is this chip CW252016-4R7J surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. It has an inductance of 4.7u H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 175m A with a maximum resistance of 4 Ohm. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 43M Hz. This product is 2.7 mm long, 1.8 mm tall and 2.2 mm deep.

安富利:
Ind Chip Wirewound 4.7uH 5% 7.9MHz 18Q-Factor Ferrite 175mA 1008 T/R

Chip1Stop:
Ind Chip Wirewound 4.7uH 5% 7.9MHz 18Q-Factor Ferrite 175mA 1008 T/R

Verical:
Inductor RF Wirewound 4.7uH 5% 7.96MHz 20Q-Factor Ferrite 0.26A 4Ohm DCR 1008 T/R

Newark:
# BOURNS  CW252016-4R7J  Surface Mount High Frequency Inductor, CW252016 Series, 4.7 µH, 175 mA, 1008 [2516 Metric]
