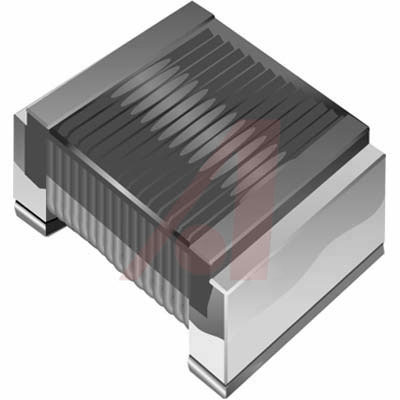

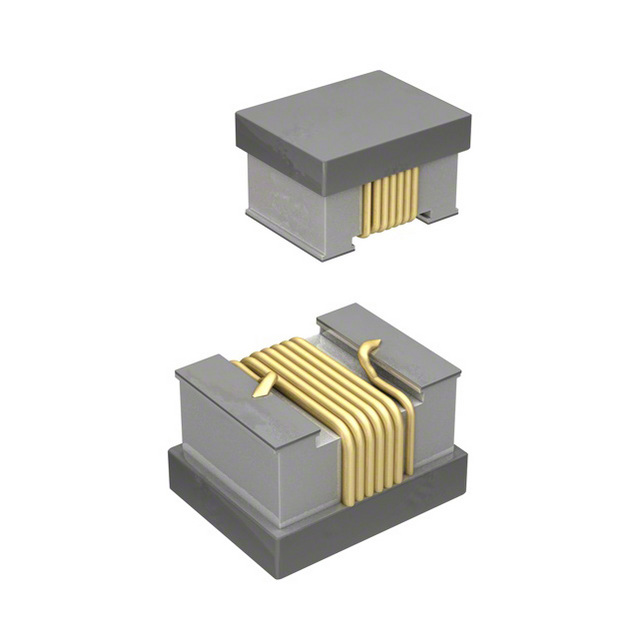

CW252016-R68J

高Q值的片式电感器 High Q Chip Inductors

无屏蔽 绕线 器 1.55 欧姆最大 1008（2520 公制）

立创商城:
680nH ±5% 1.55Ω

得捷:
FIXED IND 680NH 400MA 1.55OHM SM

艾睿:
This chip CW252016-R68J surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 5%. This device is made with wirewound technology. This product is 2.7 mm long, 1.8 mm tall and 2.2 mm deep. It has an inductance of 680n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 1.55 Ohm. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 375M Hz.

Allied Electronics:
Inductor, High Q Chip, Tol 5%; Ind 680nH; Case 1008; DCR 1.47 Ohms

安富利:
Ind Chip Wirewound 680nH 5% 25MHz 45Q-Factor Ceramic 400mA 1008 T/R

Chip1Stop:
Ind Chip Wirewound 680nH 5% 25MHz 45Q-Factor Ceramic 400mA 1008 T/R

Verical:
Inductor Chip Wirewound 680nH 5% 25MHz 45Q-Factor Ceramic 400mA 1.55Ohm DCR 1008 T/R

Newark:
# BOURNS  CW252016-R68J  Surface Mount High Frequency Inductor, CW252016 Series, 680 nH, 400 mA, 1008 [2516 Metric]

MASTER:
Inductor RF Wirewound 0.68uH 5% 25.2MHz 45Q-Factor Ceramic 0.4A 1.55Ohm DCR 1008 T/R

Electro Sonic:
Inductor RF Wirewound 0.68uH 5% 25.2MHz 45Q-Factor Ceramic 0.4A 1.55Ohm DCR 1008 T/R
