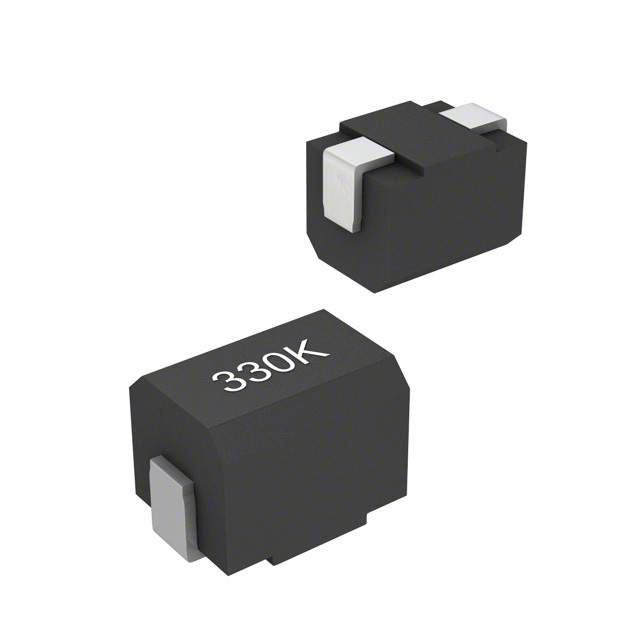

绕线片式电感 Wirewound Chip Inductor
3.3µH Unshielded Wirewound Inductor 750mA 220mOhm Max 1812 4532 Metric
立创商城:
3.3uH ±10% 220mΩ
得捷:
FIXED IND 3.3UH 750MA 220MOHM SM
贸泽:
Fixed Inductors 3.3uH 10% 7.96MHz
艾睿:
Inductor General Purpose Chip Wirewound 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 0.75A 0.22Ohm DCR 1812 T/R
安富利:
Ind Chip Wirewound 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 750mA 1812 T/R
Verical:
Inductor General Purpose Chip Wirewound 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 0.75A 0.22Ohm DCR 1812 T/R
Electro Sonic:
Inductor General Purpose Chip Wirewound 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 0.75A 0.22Ohm DCR 1812 T/R
额定电流 750 mA
容差 ±10 %
电感 3.3 µH
自谐频率 45 MHz
Q值 10
电感公差 ±10 %
测试频率 7.96 MHz
电阻DC) ≤220 mΩ
工作温度Max 125 ℃
工作温度Min 40 ℃
电阻DC Max 220 mΩ
安装方式 Surface Mount
封装公制 4832

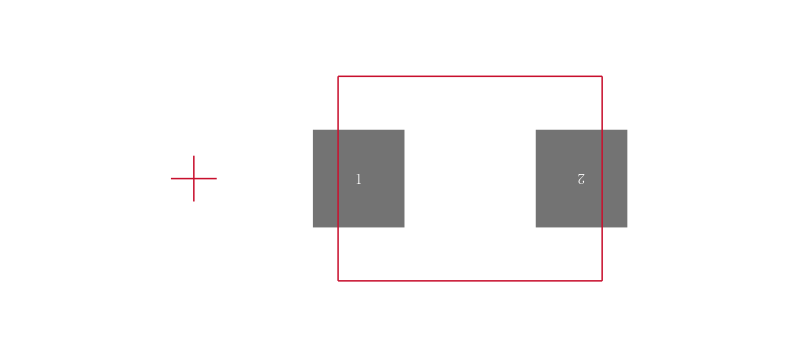

封装 1812
长度 4.2 mm
宽度 3.2 mm
高度 3.4 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
