CW160808-R12J

高Q值的片式电感器 High Q Chip Inductors

High Q Chip Inductors

Features

■0603 size

■ Available in E12 series

■ High Q - up to 80 typ.

■ High operating temperature of 125 °C

■ Small size of only 1.6 mm

■RoHS compliant

.

Applications

■Mobile phones

■Cellular phones

■ CTV, VCR, HIC, FDD

立创商城:
120nH ±5% 650mΩ

得捷:
FIXED IND 120NH 300MA 790MOHM SM

艾睿:

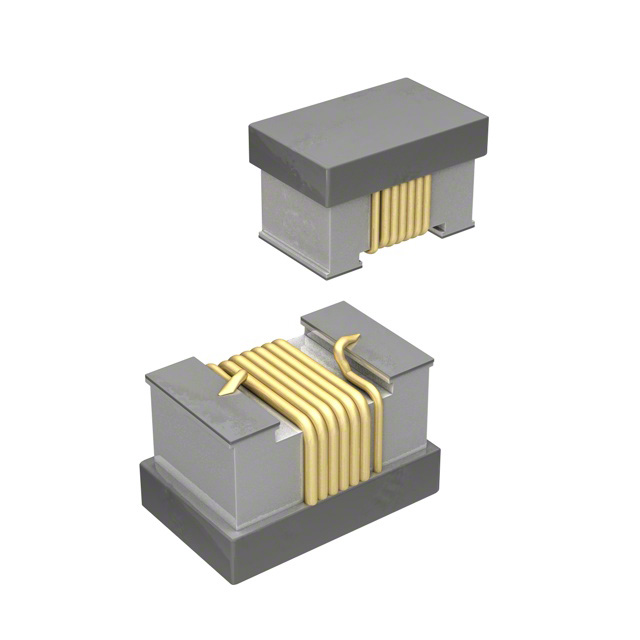

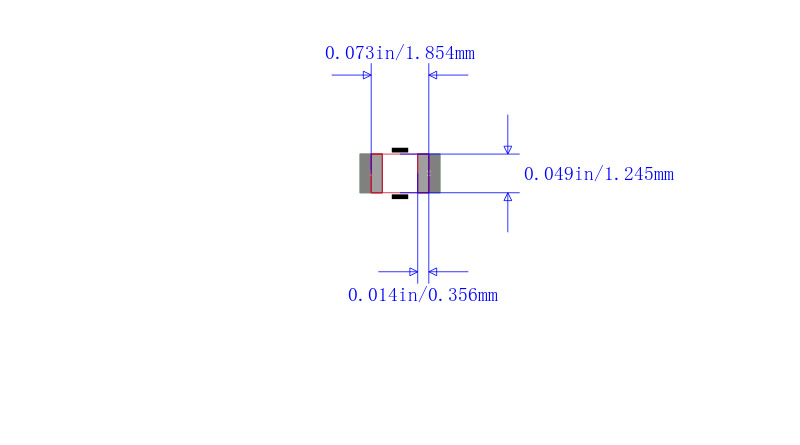

This chip CW160808-R12J surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 790m Ohm. It has a tolerance of 5%. Its test frequency is 150M Hz, while its minimum self-resonant frequency is 1.35G Hz. This product is 1.85 mm long, 1.2 mm tall and 1.25 mm deep. This device utilizes wirewound technology. It has an inductance of 120n H.

安富利:
Ind Chip Wirewound 120nH 5% 150MHz 32Q-Factor Alumina 300mA 0603 T/R

Chip1Stop:
Inductor Chip Wirewound 120nH 5% 150MHz 32Q-Factor Alumina 300mA 790mOhm DCR 0603 T/R

Verical:
Inductor RF Wirewound 0.12uH 5% 150MHz 32Q-Factor Alumina 0.3A 0.79Ohm DCR 0603 T/R

Electro Sonic:
Inductor General Purpose Chip Laser Cut 120nH 5% 25.2MHz 5Q-Factor Alumina Ceramic 130mA 3Ohm DCR 0603 T/R
