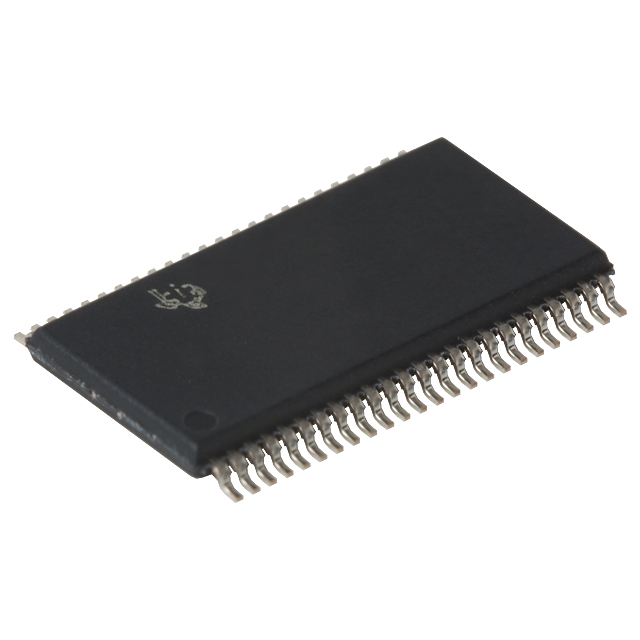

CLVC16244AIDGGREP

16位缓冲器/驱动器，具有三态输出 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS

DESCRIPON

This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.

The SN74LVC16244A is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

FEATURES

• Controlled Baseline

– One Assembly/Test Site, One Fabrication Site

• Enhanced Diminishing Manufacturing Sources DMS Support

• Enhanced Product-Change Notification

• Qualification Pedigree

• Member of the Texas Instruments Widebus™ Family

• Operates From 1.65 V to 3.6 V

• Inputs Accept Voltages to 5.5 V

• Max tpd of 4.1 ns at 3.3V

• Typical VOLP Output Ground Bounce <0.8V at VCC = 3.3V, TA= 25°C

• Typical VOHVOutput VOH Undershoot >2V at VCC = 3.3V, TA= 25°C

• Ioff Supports Partial-Power-Down Mode Operation

• Supports Mixed-Mode Signal Operation On All Ports 5-V Input/Output Voltage With 3.3-V VCC

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 1000-V Charged-Device Model C101
