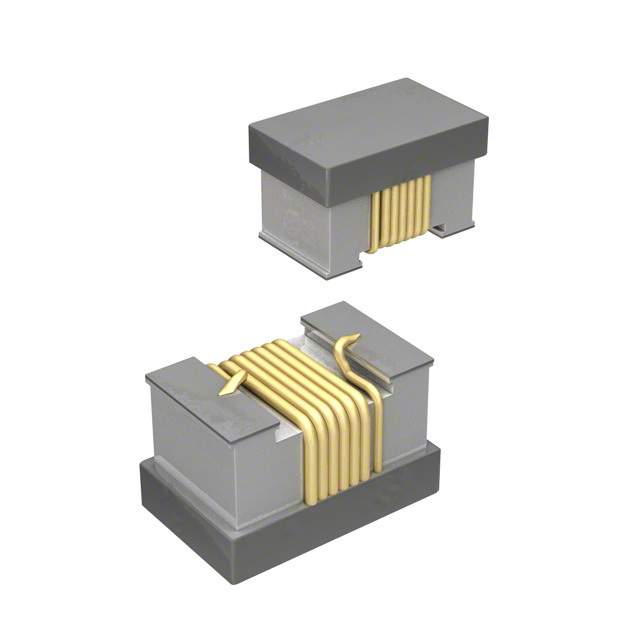

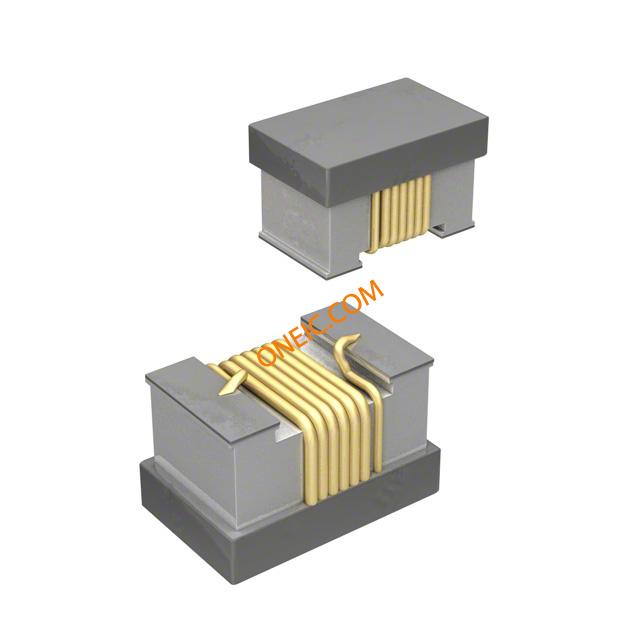

CW160808-R27J

高Q值的片式电感器 High Q Chip Inductors

High Q Chip Inductors

Features

■0603 size

■ Available in E12 series

■ High Q - up to 80 typ.

■ High operating temperature of 125 °C

■ Small size of only 1.6 mm

■RoHS compliant

.

Applications

■Mobile phones

■Cellular phones

■ CTV, VCR, HIC, FDD

得捷:
FIXED IND 270NH 170MA 2.3OHM SMD

贸泽:
Fixed Inductors 270nH 5%

艾睿:

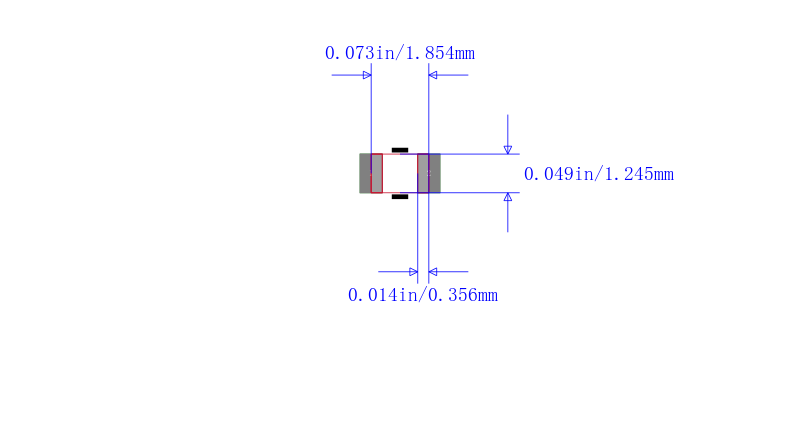

Save valuable space on a PCB with this chip CW160808-R27J surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 990M Hz. It has a tolerance of 5%. This device utilizes wirewound technology. This product is 1.85 mm long, 1.2 mm tall and 1.25 mm deep. This SMD inductor has a maximum DC current of 170m A with a maximum resistance of 2.3 Ohm. It has an inductance of 270n H.

安富利:
Ind Chip Wirewound 270nH 5% 100MHz 25Q-Factor Alumina 170mA 0603 T/R

Verical:
Inductor RF Wirewound 0.27uH 5% 100MHz 25Q-Factor Alumina 0.17A 2.3Ohm DCR 0603 T/R

Newark:
# BOURNS  CW160808-R27J  Surface Mount High Frequency Inductor, CW160808 Series, 270 nH, 170 mA, 0603 [1608 Metric]

MASTER:
Inductor RF Wirewound 0.27uH 5% 100MHz 25Q-Factor Alumina 0.17A 2.3Ohm DCR 0603 T/R

Electro Sonic:
Inductor RF Wirewound 0.27uH 5% 100MHz 25Q-Factor Alumina 0.17A 2.3Ohm DCR 0603 T/R
