电感, 多层, 39NH, 0.5A, 0805
39nH Unshielded Wirewound Inductor 500mA 180mOhm 0805 2012 Metric
立创商城:
39nH ±5% 290mΩ
得捷:
FIXED IND 39NH 500MA 180MOHM SMD
贸泽:
Fixed Inductors 39nH 5%
e络盟:
高频电感器, 39 nH, CW201212 Series, 500 mA, 0805 [2012 公制], 多层, 0.18 ohm
艾睿:

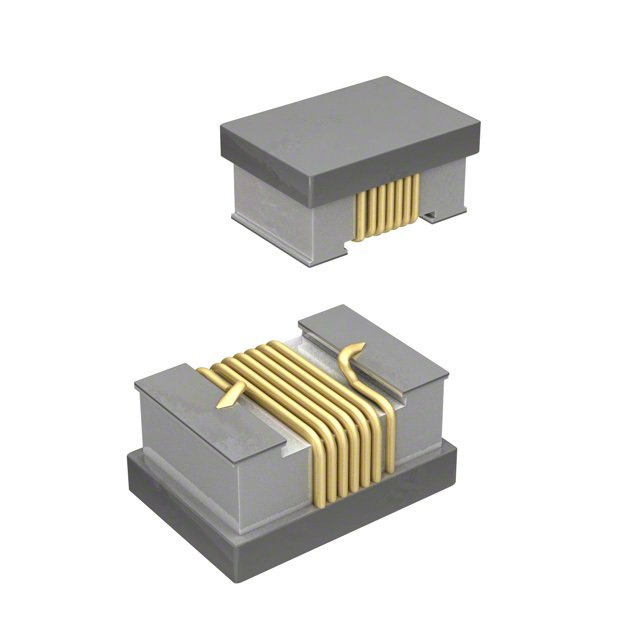

Use this chip CW201212-39NJ surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 180m Ohm. It has an inductance of 39n H. This product is 2.3 mm long, 1.5 mm tall and 1.7 mm deep. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 2.1G Hz. This device utilizes wirewound technology. It has a tolerance of 5%.
安富利:
Ind Chip Wirewound 39nH 5% 250MHz 60Q-Factor Ceramic 500mA 0805 T/R
Verical:
Inductor RF Wirewound 0.039uH 5% 250MHz 60Q-Factor Ceramic 0.5A 0.18Ohm DCR 0805 T/R
MASTER:
Inductor RF Wirewound 0.039uH 5% 250MHz 60Q-Factor Ceramic 0.5A 0.18Ohm DCR 0805 T/R
Electro Sonic:
Inductor RF Wirewound 0.039uH 5% 250MHz 60Q-Factor Ceramic 0.5A 0.18Ohm DCR 0805 T/R
额定电流 500 mA
容差 ±5 %
电感 39 nH
自谐频率 2.1 GHz
Q值 60
电感公差 ±5 %
测试频率 250 MHz
电阻DC) 180 mΩ
额定电流DC 500 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.18 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805

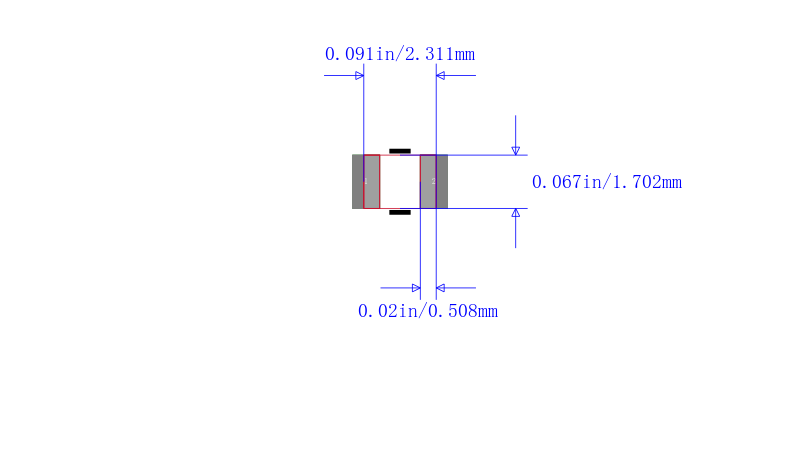

长度 2.1 mm
宽度 1.5 mm
高度 1.3 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CW201212-39NJ Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
0805-39NJ API Delevan | 功能相似 | CW201212-39NJ和0805-39NJ的区别 |
PE-0805CM390KTT 普思电子 | 功能相似 | CW201212-39NJ和PE-0805CM390KTT的区别 |
