3.3 -V ABT 16位缓冲器/驱动器,具有三态输出 3.3-V ABT 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
缓冲器,非反向 4 元件 4 位每元件 三态 Output 48-TSSOP
得捷:
IC BUF NON-INVERT 3.6V 48TSSOP
立创商城:
CLVTH16244AQDGGREP
德州仪器TI:
Enhanced product 16-ch, 2.7-V to 3.6-V buffers with TTL-compatible CMOS inputs and 3-state outputs
贸泽:
Buffers & Line Drivers Mil Enhance 3.3V ABT 16B Buffer/Driver
艾睿:
By driving the input to the transmission line this CLVTH16244AQDGGREP buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin TSSOP T/R
Chip1Stop:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin TSSOP T/R
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS CLVTH16244AQDGGREP Buffer / Line Driver, 74LVT16244, 3.6 V to 2.7 V, TSSOP-48
电源电压DC 2.70V ~ 3.60V
输出接口数 16
通道数 16
位数 16
传送延迟时间 4.40 ns
电压波节 3.30 V, 2.70 V
静态电流 5 mA
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 48

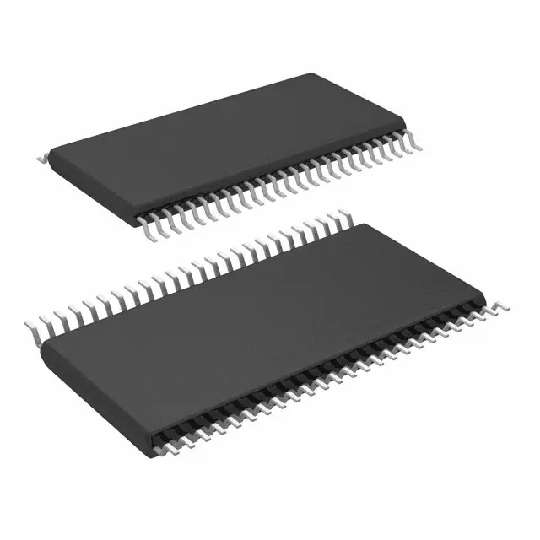

封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-48
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLVTH16244AQDGGREP TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH16244ADGG 德州仪器 | 完全替代 | CLVTH16244AQDGGREP和SN74LVTH16244ADGG的区别 |
SN74LVTH16244ADLR 德州仪器 | 类似代替 | CLVTH16244AQDGGREP和SN74LVTH16244ADLR的区别 |
SN74LVTH16244ADL 德州仪器 | 类似代替 | CLVTH16244AQDGGREP和SN74LVTH16244ADL的区别 |
