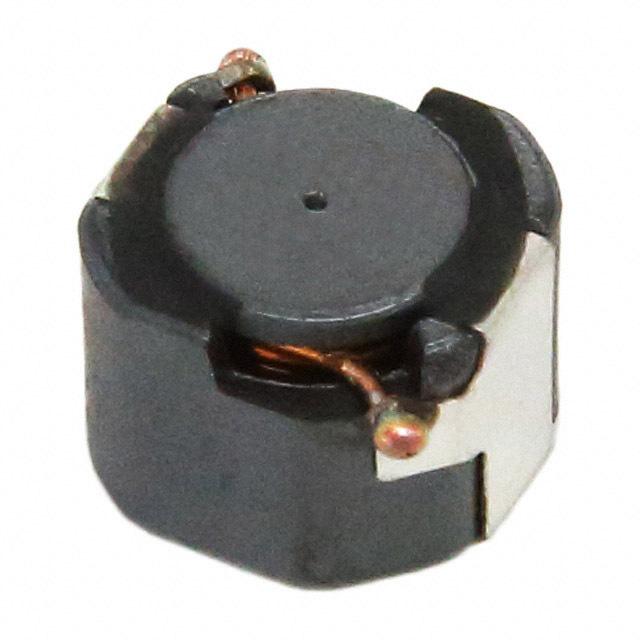

TDK CLF6045T-220M 表面贴装功率电感器, CLF系列, 22 µH, ± 20%, 屏蔽, 0.078 ohm, 1.7 A
固定器
得捷:
FIXED IND 22UH 1.7A 93.6MOHM SMD
欧时:
TDK CLF 系列 屏蔽 铁氧体芯材 22 μH 绕线贴片电感器 CLF6045T-220M, ±20%容差, 1.7A Idc
贸泽:
Fixed Inductors 22uH
e络盟:
TDK CLF6045T-220M 表面贴装功率电感器, CLF系列, 22 µH, ± 20%, 屏蔽, 0.078 ohm, 1.7 A
艾睿:
This power CLF6045T-220M surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 6.4 mm long, 4.8 mm tall and 6.1 mm deep. It has an inductance of 22u H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 1.7Typ A with a maximum resistance of 93.6m Ohm. It has a tolerance of 20%. Its test frequency is 100K Hz.
Verical:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1.7A 0.0936Ohm DCR T/R
Newark:
# TDK CLF6045T-220M Surface Mount Power Inductor, CLF Series, 22 H, 20%, Shielded, 0.078 ohm, 1.7 A
额定电流 1.7 A
容差 ±20 %
电感 22 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤93.6 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.078 Ω
安装方式 Surface Mount
封装 6.2mm x 5.9mm x 4.5mm
长度 6.2 mm
宽度 5.9 mm
高度 4.5 mm
封装 6.2mm x 5.9mm x 4.5mm
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLF6045T-220M TDK 东电化 | 当前型号 | 当前型号 |
CLF6045T-220M-D 东电化 | 类似代替 | CLF6045T-220M和CLF6045T-220M-D的区别 |
B82462G4223M 爱普科斯 | 功能相似 | CLF6045T-220M和B82462G4223M的区别 |
B82462G4223M000 爱普科斯 | 功能相似 | CLF6045T-220M和B82462G4223M000的区别 |
